0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers

    Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers
    • Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers
    • Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers
    • Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers
    • Buy cheap 0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric from wholesalers

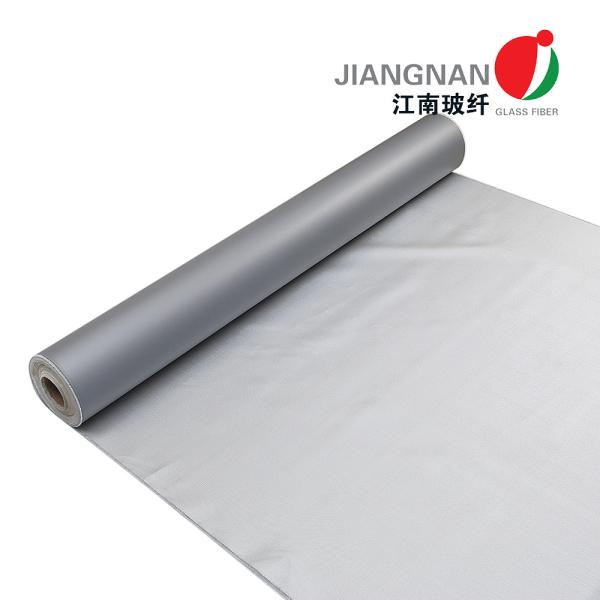

    0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : Silicone Coating
    Certification : ISO 9001 2019, NFPA701
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, etc
    Supply Ability : 300000sqm/month
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    0.6 / 0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric

    0.6/0.8mm Silicone Coated Fabric For Fire Curtain System Fire Retardant Curtain Fabric


    Product Description:

    Stainless steel wire reinforced fiberglass fabrics for fire curtain barriers. Fire curtains are used to provide fire separation between different spaces. It is designed to prevent the spread of fire and smoke. Therefore, it can be guaranteed that people can safely enter the escape route.

    Our fire-resistant fiberglass fabrics can be made into fire-resistant curtains of different widths, heights and shapes to suit different building applications, ensuring that their architectural designs comply with stringent fire regulations. Can fire for 180 minutes.


    Basic Fiberglass Cloth Technique Data Sheets

    ItemTechnical Requirement

    Fiberglass Cloth Thickness(mm)

    0.8±0.05
    Width(mm)1000±10

    Length(m/roll)

    100
    Fiberglass Cloth Weight(g/m2)820±20
    Warp/weft density(thread/cm)16*15±1

    Coating Weight(g/m2)

    70±10

    Final Product Weight(g/m2)

    900±20
    Cloth Heat Resistance550℃

    Fire ResistanceUL 94 V0
    Convective HeatEN ISO 9151 | B1
    Radiant HeatEN ISO 6942 | C1
    Traction ResistanceASTM-D-1424 | Warp 1500 lbs/inch Fill 2025 lbs/inch
    Flame PropagationISO 15025 | A1 - A2
    Melted Metal SplashesEN ISO 9150 | CLASS 2
    EN ISO 9185 | E3/D3
    Water Penetration ResistanceEN 20811 | 100
    Resistance Welding And Cutting Projections11611 | CLASS 2
    Abrasion ResistanceISO 12947-2 | 20-000 Cycles

    Polyurethane Coating Fiberglass Cloth

    Product TypeThickness mmWeight g/m2Weave
    PW05 SS0.5455Plain
    666 SS0.66308H Satin
    M860W SS0.8820Dougle Weft Yarn
    M860 SS0.758208H Satin
    M860C SS0.8820Close To Satin
    M30 SS1.21050Plain

    Other thicknesses can be customized upon request


    How to choose the steel wire cloth that you need?

    StyleThickness mmWeight gsmFeatures
    M8600.75820softest, more hairiness on the surface
    M860C0.78820Between 860 and M860W
    M860W0.8820cloth surface is relatively hard, without hairiness, and the cloth surface is smooth


    Properties:

    1. Withstand high temperatures up to 280℃.

    2. Strong fire resistant, good smoke and gas sealing.

    3. good tear strength resistance, high strength, good puncture resistance​.

    4. High stability, Durable.

    5. Chemical resistance, oilproof, waterproof.

    6. No harm to human body, asbestos free, halogen free.

    7. Environmentally friendly.


    Why Choose Us?

    Jiangnan factory area strictly follows the ISO9001:2015 and ISO14001:2015 management system certification. At the same time, we have invested 10 million US dollars in establishing a complete production line, from raw material weaving to finished product post-processing, to provide quality comparable to first-line products.


    Jiangnan has established two mature production management systems:

    • Knitting → Warping → Weaving → Coating → Post-treatment
    • Customization→Design→Manufacturing→Quality Inspection→User Experience Tracking

    (Beaming)


    (Rapier weaving machine to weave glass fiber fabric)


    (2 Meters Coating Equipment)


    (Warehouse)
