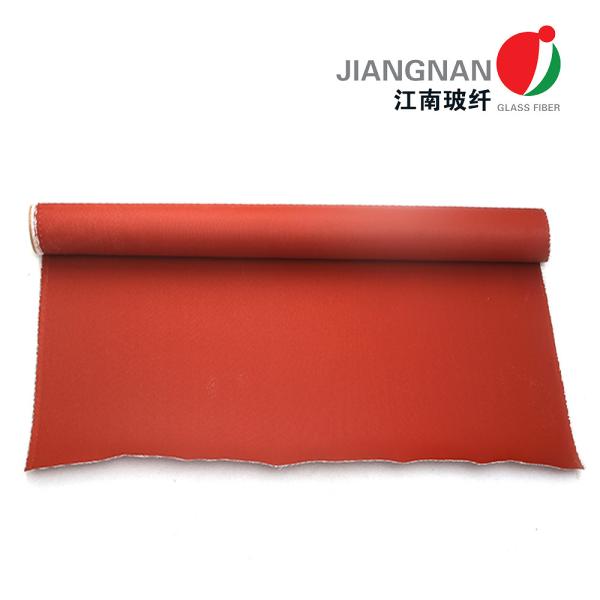

Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers

    Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers
    • Buy cheap Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System from wholesalers

    Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 0.43mm Silicone Coating Fiberglass Cloth
    Certification : ISO 9001 2019, NFPA701
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, etc
    Supply Ability : 300000sqm/month
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    Red 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System

    Red Color 0.4mm High Temp Fiberglass Fire Curtain Fabric Cloth For Building Fire Control System


    Product Description:

    Silicone coating treated glass fabric has good resistance to high temperature. It's able to work in temp. 5500C.Easy to be sewn,cut,and punch holes more effectively. This kind of cloth is a woven fiberglass fabric with weave-set treatment to improve fabrciating property .This fabric is used for firesmoke curtain,or other fire control systems in hospital,terminal building,airport, shopping mall,or meeting room. This color for the silicone coating can be customerized ,we provide varieties of thickness, color options for different projects.


    Applications

    1. Smoke curtain

    2. Heat insulation blanket

    3. Fire barrier

    4. Reusable insulation pads


    Basic Fiberglass Cloth Technique Data Sheets


    Weight560g/sq.mtr
    Thickness0.45mm
    Yarn9um glass fiber
    ConstructionCheck board
    ColorCustomized
    Continous temperatureup to 550 C
    Coating

    Silicone Coating on two sides

    Demension1520mm
    Flame retardantYes

    Fire ResistanceUL 94 V0
    Convective HeatEN ISO 9151 | B1
    Radiant HeatEN ISO 6942 | C1
    Traction ResistanceASTM-D-1424 | Warp 1500 lbs/inch Fill 2025 lbs/inch
    Flame PropagationISO 15025 | A1 - A2
    Melted Metal SplashesEN ISO 9150 | CLASS 2
    EN ISO 9185 | E3/D3
    Water Penetration ResistanceEN 20811 | 100
    Resistance Welding And Cutting Projections11611 | CLASS 2
    Abrasion ResistanceISO 12947-2 | 20-000 Cycles

    Silicone Coating Fiberglass Cloth


    Knife Coating Silicone Coating Differences between Premier and Industrial Quality
    Premier QualityIndustrial Quality
    1LoomstateHigh-speed Rapier Weaving MachineNormal Dornier (small weaving defects might occur occasionally)
    2SiliconeWet, High-Quality Silicone RubberDry, Standard Silicone Rubber
    3AppearanceShiny and TackyDull but Smooth
    4PerformanceStrong Adhesion Strength Between Silicone Fabric, High Abrasion ResistanceNormal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances
    5ApplicationMostly for Removable Insulation JacketsMostly for Welding, But Also for Economic Removable Insulation Jackets

    Premier QualityThickness mmWeight (g/m2)Weaving
    E7628-LG10.2mm230Plain
    E7628-LG20.23mm280Plain
    E3732-LG10.4mm510Twill
    E3732-LG20.45mm590Twill
    E666-LG10.6mm750Stain
    E666-LG10.7mm850Satin
    E3784-LG10.8mm950Satin
    E3784-LG20.9mm1050Satin
    Other thicknesses can be customized upon request


    Properties:

    1. Easy to be cut,sewn and fabricated

    2. High temp. resistant up to 550C

    3. Excellent abrasion resistance property

    4. Oil retardant,chemical resistane


    Why Choose Us?

    Jiangnan factory area strictly follows the ISO9001:2015 and ISO14001:2015 management system certification. At the same time, we have invested 10 million US dollars in establishing a complete production line, from raw material weaving to finished product post-processing, to provide quality comparable to first-line products.


    Jiangnan has established two mature production management systems:

    • Knitting → Warping → Weaving → Coating → Post-treatment
    • Customization→Design→Manufacturing→Quality Inspection→User Experience Tracking

    (Beaming)


    (Rapier weaving machine to weave glass fiber fabric)


    (2 Meters Coating Equipment)


    (Warehouse)
