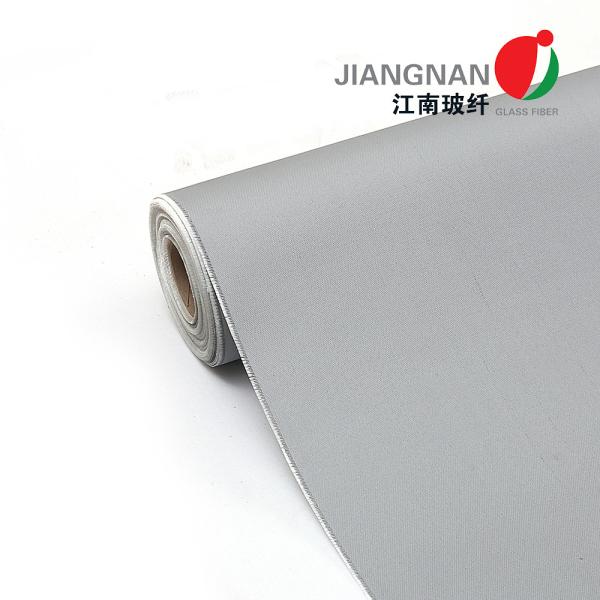

    100cm Width Silicone Coated Fiberglass Fabric Polyurethane PU Coated Fiberglass Cloth

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 0.45 mm T PU2 Coating
    Certification : ISO 9001 2019, NFPA701
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, etc
    Supply Ability : 300000sqm/month
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    100cm Width Silicone Coated Fiberglass Fabric Polyurethane PU Coated Fiberglass Cloth

    100cm Width Silicone Coated Fiberglass Fabric Polyurethane PU Coated Fiberglass Cloth


    Product Description:

    PU coated glass fiber cloth can be used in building sealing materials, high temperature anti-corrosion conveyor belts, packaging materials and other fields. PU coated glass fiber cloth is also divided into single-sided PU coated glass fiber cloth and double-sided PU coated glass fiber cloth. The regular colors of PU coated fiberglass cloth are gray, red, blue, black, white, and other colors can also be customized.


    Basic Fiberglass Cloth Technique Data Sheets

    ItemTechnical Requirement

    Fiberglass Cloth Thickness(mm)

    0.45±0.05
    Width(mm)1000±10

    Length(m/roll)

    100
    Fiberglass Cloth Weight(g/m2)430±20
    Warp/weft density(thread/cm)18.5*10.5±1

    Coating Weight(g/m2)

    30±10

    Final Product Weight(g/m2)

    460±20
    Cloth Heat Resistance550℃

    Fire ResistanceUL 94 V0
    Convective HeatEN ISO 9151 | B1
    Radiant HeatEN ISO 6942 | C1
    Traction ResistanceASTM-D-1424 | Warp 1500 lbs/inch Fill 2025 lbs/inch
    Flame PropagationISO 15025 | A1 - A2
    Melted Metal SplashesEN ISO 9150 | CLASS 2
    EN ISO 9185 | E3/D3
    Water Penetration ResistanceEN 20811 | 100
    Resistance Welding And Cutting Projections11611 | CLASS 2
    Abrasion ResistanceISO 12947-2 | 20-000 Cycles

    Polyurethane Coating Fiberglass Cloth

    Product TypeThickness mmWeight g/m2Weave
    3732-PU10.43455Twill
    3732-PU20.43470Twill
    3784-PU10.88708H Satin
    3784-PU20.89008H Satin
    666 SS-PU10.656608H Satin
    666 SS-PU20.657008H Satin
    Other thicknesses can be customized upon request


    Properties:

    1. 50g/m2 PU coating on each side
    2. Pu coating can withstand 1100℃ for a short time
    3. Chemical corrosion resistant, resist most acids
    4. Oil resistant, Waterproofing (it is washable)
    5. Heat resistant, resist high temperature below 260℃

    Main Applications of PU Coated Glass Fabric

    Welding Blanket

    Fire Curtain, Fire doors

    Fabric air distribution ducts

    Fabric ductwork connector

    Other fire and smoke control systems


    Why Choose Us?

    Jiangnan factory area strictly follows the ISO9001:2015 and ISO14001:2015 management system certification. At the same time, we have invested 10 million US dollars in establishing a complete production line, from raw material weaving to finished product post-processing, to provide quality comparable to first-line products.


    Jiangnan has established two mature production management systems:

    • Knitting → Warping → Weaving → Coating → Post-treatment
    • Customization→Design→Manufacturing→Quality Inspection→User Experience Tracking

    (Beaming)


    (Rapier weaving machine to weave glass fiber fabric)


    (2 Meters Coating Equipment)


    (Warehouse)
