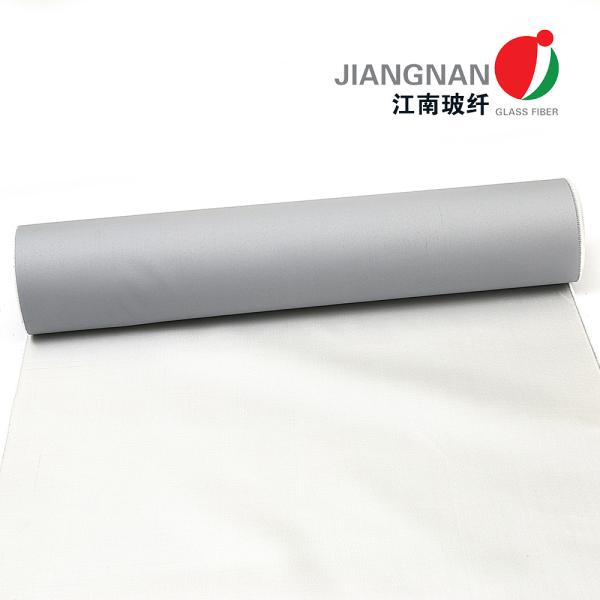

Fire Resistant Fiberglass Fabric, 1000mm-2000mm Width, Grey Color
Pu Coated Fabric
Product Description:
Polyurethane Coated Fiberglass Cloth (PU Coated FIberglass Cloth)
is a fire resistant fabric that is highly abrasion and tear
resistant. It is available in thicknesses ranging from 0.4mm to
3.0mm, and can be used for a wide variety of applications,
including air distribution systems, curtain walls, and fire
protection systems. It meets UL94 V0, NFPA701, and DIN 4102
flammability standards, and is available in widths of 1000mm to
2000mm. This fabric is an excellent choice for applications that
require fire resistance, durability, and strength.
Features:
- Product Name: Pu Coated Fiberglass Fabric
- Flammability: UL94 V0, NFPA701, DIN 4102
- Coating: Polyurethane PU Coating
- Coating Temperature Resistance: Coating: -50℃ To +260℃
Instantaneous Up To 1100℃
- Features: Abrasion Resistance
- Weight: 200gsm-3000gsm
Applications:
Jiangnan Polyurethane Coated Fiberglass Cloth is a fire resistant fabric that offers superior protection from
fire hazards. It is made of high quality fiberglass and coated with
polyurethane to provide enhanced fire resistance. This PU coated
fiberglass cloth has the certification of ISO 9001, NFPA701 and has
a minimum order quantity of 100 meters. It is available in a
variety of thicknesses ranging from 0.4mm to 3.0mm, and widths from
1000mm to 2000mm. The coating temperature resistance is -50℃ to
+260℃ instantaneous up to 1100℃ and the basic cloth temperature
resistance is 550°C. The price is negotiable and the delivery time
is 5-14 days after payment. In addition, Jiangnan can provide a
supply capacity of 10000 square meters per day.
Jiangnan Polyurethane Coated Fiberglass Cloth is a great choice for
various applications. It is widely used in the automotive industry
for soundproofing, insulation, and fireproofing in engine
compartments and cabins. It is also used in the construction
industry as a fireproofing material for walls and ceilings.
Moreover, it can be used in the aerospace and marine industries for
fire protection in aircraft and vessels. In addition, it is also
used for welding blankets, heat shields, and gasket material. The
packaging for each roll is in carton, and several cartons are in a
pallet.
Technical Parameters:
| Property | Value |
|---|
| Product Name | Pu Coated Fiberglass Fabric Cloth |
| Weight | 200gsm-3000gsm |
| Coating | Polyurethane PU Coating |
| Thickness | 0.4mm - 3.0mm |
| Coating Temperature Resistance | -50℃ To +260℃ Instantaneous Up To 1100℃ |
| Features | Abrasion Resistance |
| Application 1 | Air Distribution System |
| Chemical Resistance | Excellent |
| Weave Structure | Plain, Twill, Satin |
| Color | White, Black, Grey, Red, Blue, Green, Etc. |
Customization:
Customized Service for PU Coated Fiberglass Fabric
Brand Name: Jiangnan
Model Number: PU Coated Fiberglass Cloth
Place of Origin: China
Certification: ISO 9001, NFPA701,
Minimum Order Quantity: 100 Meter
Price: Negotiable
Packaging Details: Each Roll in Carton, Several Cartons in a Pallet
Delivery Time: 5-14 Days after the Payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 Square Meters per day
Weight: 200gsm-3000gsm
Coating: Polyurethane PU Coating
Color: White, Black, Grey, Red, Blue, Green, Etc.
Width: 1000mm-2000mm
Basic Cloth Temperature Resistance: 550°C
Key Features:
Fire Resistant Fabric
Polyurethane Coated Fiberglass Cloth
PU Fiberglass Fabric
Packing and Shipping:
Pu Coated Fiberglass Fabric is generally packaged and shipped in
the following way:
- Each roll of Pu Coated Fiberglass Fabric is wrapped in a non-woven
fabric and sealed with a zip-tie.
- Multiple rolls are placed in a cardboard box, lined with bubble
wrap for protection.
- The boxes are then secured with packing tape and labeled with the
customer’s information.
- The boxes are then loaded onto a pallet, shrink-wrapped and
labeled.
- The pallet is then loaded onto a truck or trailer for delivery.
Much More Choice for PU Coating
This kind of raw material is normally used on welding & fire
protection, thermal insulation jackets, mattress, expansion joint
belt, a protective scrim of insulation wool, composite
reinforcement
| Type | Thickness | Weight |
| mm | inch | g/m2 | oz/yd2 |
| 3732 with Double-sided Pu Coating | 0.5 | 0.0197 | 460±20 | 13.6 |
| 3732 with Double-sided Silicone Coating | 0.5 | 0.0197 | 540±20 | 15.9 |
| 3734 with Double-sided Pu Coating | 0.5+ | 0.02 | 510±20 | 15.04 |
| 3734 with Double-sided Silicone Coating | 0.5+ | 0.02 | 590±20 | 17.4 |
| Stainless Steel Wire Insert Fiberglass cloth with Double-sided Pu
Coating | 0.6 | 0.0236 | 650±20 | 19.17 |
| 800 with Double-sided Pu Coating | 0.8 | 0.0315 | 820±30 | 24.18 |
| 800 with Double-sided Silicone Coating | 0.8 | 0.0315 | 1050±30 | 32.05 |
| Other thicknesses can be customized according to your Requirements | |
FAQ:
- Q: What is Jiangnan PU Coated Fiberglass Fabric?
- A: Jiangnan PU Coated Fiberglass Fabric is a kind of fabric coated
with polyurethane, made of fiberglass material.
- Q: Where is Jiangnan PU Coated Fiberglass Fabric made?
- A: Jiangnan PU Coated Fiberglass Fabric is made in China.
- Q: What certifications does Jiangnan PU Coated Fiberglass Fabric
have?
- A: Jiangnan PU Coated Fiberglass Fabric has ISO 9001, NFPA701
certifications.
- Q: What is the minimum order quantity for Jiangnan PU Coated
Fiberglass Fabric?
- A: The minimum order quantity for Jiangnan PU Coated Fiberglass
Fabric is 100 Meter.
- Q: How long does it take to deliver Jiangnan PU Coated Fiberglass
Fabric?
