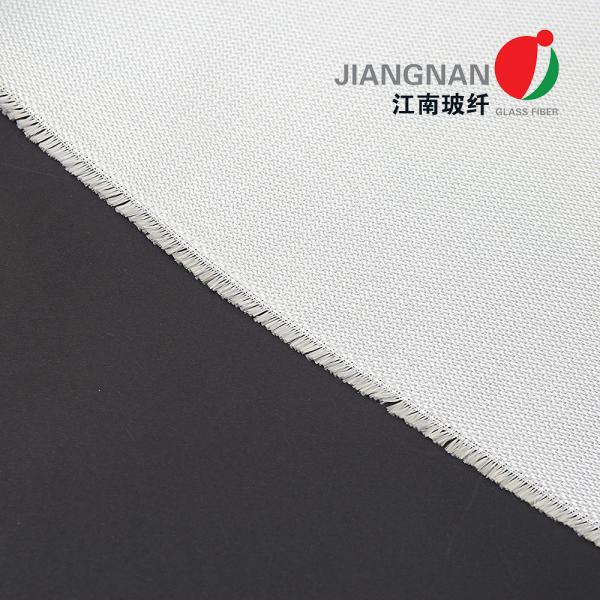

Fireproof Twill Woven Fiberglass Fabric with 1000N/50mm Tensile
Strength
Product Description:
Woven Fiberglass Fabric is made of high-quality fiberglass
material, with a temperature resistance of up to 550℃. It is
available in widths of 1000mm-2000mm and thicknesses of 0.2mm-6mm.
It also has an excellent flammability rating of UL94V-0. The
fiberglass woven fabric is strong and durable, suitable for a
variety of applications such as insulation materials, sound
insulation materials, fireproof materials, and heat insulation
materials. It has the advantages of high temperature resistance,
fire protection, low thermal conductivity, corrosion resistance,
and excellent electrical insulation properties. Woven Fiberglass
Fabric is widely used in the fields of aerospace, automotive,
building materials, electronics, and electrical engineering.
Features:
- Product Name: Woven Fiberglass Fabric
- Elongation: 10%-25%
- Temperature Resistance: 550℃
- Material: Fiberglass
- Color: White, Yellow, Black, Etc.
- Packaging: Rolls, Cartons, Etc.
- Keywords: Woven Fiberglass Cloth, Fiberglass Woven Fabric,
Fiberglass Woven Fabric
Applications:
Jiangnan Woven Fiberglass Fabric Cloth is a high-quality, durable
and versatile material made from glass fiber strands woven
together. It has excellent tensile strength and elongation, making
it ideal for a variety of applications. Certified by ISO 9001 and
NFPA701, and DIN4102, Jiangnan Woven Fiberglass Fabric Cloth can be
ordered in a minimum quantity of 100 meters in rolls, cartons or
other packaging, with a delivery time of 5-14 days after payment.
The price is negotiable and the supply ability can reach up to
10000 square meters per day. There are various types of weave
available, including plain, twill, satin, etc., to meet different
needs.
Technical Parameters:
| 3732 | | |
| Item Model | 3732 Fiberglass Fabric |
| Description | E-glass Industrial Fabric |
| Weave Structure | 1/3 Twill Weave |
| Weight | 430gsm |
| Thickness | 0.43mm |
| Yarn Type | Warp | EC9 68 1*2 |
| Weft | EC9 68 1*2 |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm |
| Break Strength | Warp | 700N/cm |
| Weft | 600N/cm |
| LOI | < 5% |
| Working Temperature | ≤550℃ |
Customization:
Customized Woven Fiberglass Fabric
Brand Name: Jiangnan
Model Number: Woven Fiberglass Fabric Cloth
Place of Origin: China
Certification: ISO, SGS, Etc.
Minimum Order Quantity: 100 Meter
Price: Negotiable
Packaging Details: Each Roll in Carton, Several Cartons in a Pallet
Delivery Time: 5-14 Days after the Payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 Square Meters per day
Material: Fiberglass
Thickness: 0.2mm-6mm
Weave: Plain, Twill, Satin, Etc.
Temperature Resistance: 550℃
Keywords: Woven Fiberglass Cloth, Woven Fiberglass Cloth,
Fiberglass Woven Cloth
Support and Services:
Woven Fiberglass Fabric Technical Support and Service
We offer technical support and service for our Woven Fiberglass
Fabric products. Our technical support team is available to answer
any questions you may have, provide guidance on product usage, and
help troubleshoot any issues.
We also provide online resources such as product documentation,
installation guides, and troubleshooting guides to help you get the
most out of your Woven Fiberglass Fabric products.
If you need additional assistance, our customer service team is
available to help. We can provide product advice, provide
replacement parts, and answer any product related questions you may
have.
Packing and Shipping:
Packaging and Shipping of Woven Fiberglass Fabric
Woven Fiberglass Fabric is shipped in cardboard boxes, which are
marked with the corresponding product details. The product is
securely packaged in bubble wrap and placed in the box. Labels with
the product details are also attached to the box. The boxes are
then securely taped and shipped to the customer.
Much More Related Products
NO. |
Style |
Width Item,cm |
Weight,g/m2 |
Thickness,mm |
Weaving type |
| 1 | 7781 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 2 | 7581 | 107 127 157 207 254 | 300.0±8.0 | 0.222 | 8HS |
| 3 | 3732 | 107 127 157 207 254 | 425.0±8.0 | 0.312 | Twill |
| 4 | 332L | 107 127 157 207 254 | 416.6±8.0 | 0.287 | 4HS |
| 5 | 332 | 107 127 157 207 254 | 427.0±8.0 | 0.343 | 4HS |
| 6 | 0620 | 107 127 157 207 254 | 640.0±20.0 | 0.385 | 8HS |
| 7 | 3784 | 107 127 157 207 254 | 870.0±10.0 | 0.670 | 8HS |
| 8 | 3786 | 107 127 157 207 254 | 1450.0±10.0 | 0.930 | 12HS |
| 9 | 3788 | 107 127 157 207 254 | 1650.0±20.0 | 1.230 | 12HS |
FAQ:
Q1: What is the Brand Name of Woven Fiberglass Fabric?
A1: The Brand Name of Woven Fiberglass Fabric is Jiangnan.
Q2: What is the Model Number of Woven Fiberglass Fabric?
A2: The Model Number of Woven Fiberglass Fabric is Woven Fiberglass
Fabric Cloth.
Q3: Where is Woven Fiberglass Fabric made?
A3: Woven Fiberglass Fabric is made in China.
Q4: What certifications does Woven Fiberglass Fabric have?
A4: Woven Fiberglass Fabric has ISO 9001, NFPA701, and DIN4102
certifications.
Q5: How much does Woven Fiberglass Fabric cost?
A5: The price of Woven Fiberglass Fabric is negotiable, and the
minimum order quantity is 100 Meter.
