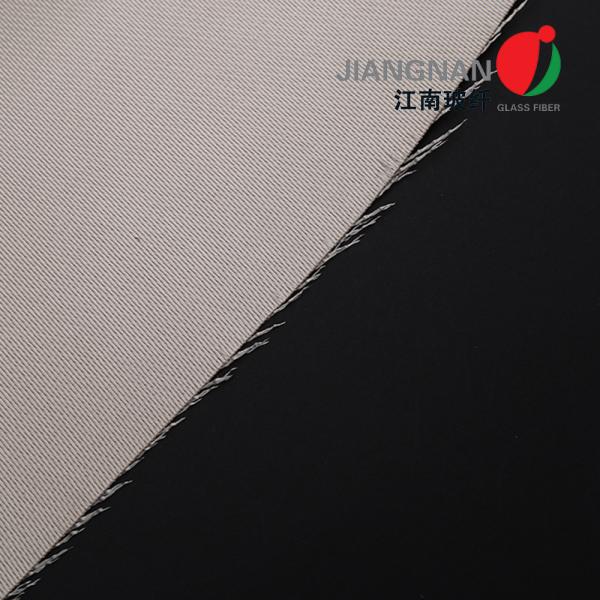

High Silica Fabric with Pu Coated Surface Treatment for E Glass
Fiberglass High Silica Cloth
Product Description:
High Silica Fiberglass Fabric is a type of material made from
fiberglass and silica. It is specially designed to have a high
tensile strength of 800*500N/In. It is also treated with a Pu
Coated surface to increase its durability and strength. This
product comes in various weights such as 300, 600, 800, and
1250g/m2. High Silica Fiberglass Fabric is a reliable and durable
material that can be used in various applications. It is ideal for
uses in industries such as aerospace, automotive, and construction.
The High Silica Fiberglass Fabric is a reliable and strong material
that can withstand extreme temperatures and provide excellent
insulation. The fabric is also resistant to corrosion, fire, and
other hazardous materials.
Features:
- Product Name: High Silica Fiberglass Fabric
- Temperature Resistance: 1000℃
- Type Fiberglass: E Glass
- Length: 50m-100m
- Thickness: 0.3,0.6,0.8,1.3mm
- Application: Welding Protection, Fire Curtain, Smoke Curtain, Thermal Insulation
- Highlight: High Silica Fabric, High Silica Fiberglass Cloth, High Silica Cloth
Fabric, High Silica Fiberglass Fabric
Applications:
High Silica Fiberglass Fabric provided by Jiangnan is certified by ISO 9001, NFPA701, DIN4102
and has a minimum order quantity of 100 Meter. It is available in
weight of 300,600,800,1250g/m2 and width of 92,100cm. It can be
used for welding protection, fire curtain, smoke curtain and
thermal insulation. This fabric is made of E Glass with a silica
content of ≥96%. It is light-weight, durable, and can withstand
extremely high temperatures. Jiangnan offers competitive price and
fast delivery time of 5-14 days for this product. It is packed in
carton with several cartons in a pallet and payment terms are L/C,
D/A, D/P, T/T. The company has a supply ability of 5000 Square
Meters per day.
Technical Parameters:
Item |
Technical Requirement |
Test Result |
| Width(mm) | 1000±10 | 1002 |
| Weave Style | 8HS Satin | 8HS Satin |
| Warp Counts (ends/cm) | ≥18 | 19 |
| Fill Count | ≥13 | 14 |
Warp Breaking Strength (N/Inch) | ≥ 800 | 965 |
Weft Breaking Strength (N/Inch) | ≥ 500 | 643 |
| Weight (g/m2) | 600± 30 | 616.67 |
| Length (m) | 50.0 | 50.0 |
| Thickness | 0.7 ± 0.1 | 0.724 |
| Silica Content % | ≥ 96 | 97.8 |
| Linear Shrinkage% | 5-10 | 5.2 |
| Working Temperature | 1200 ℃ | 1200 ℃ |
| Coating Pu | 0.8-1% | 0.86% |
Customization:
High Silica Fiberglass Fabric- Brand Name: Jiangnan
- Model Number: JNHS-600
- Place of Origin: China
- Certification: ISO 9001, NFPA701, DIN4102
- Minimum Order Quantity: 100 Meter
- Price: Negotiable
- Packaging Details: Each Roll in Carton, Several Cartons in a Pallet
- Delivery Time: 5-14 Days after the Payment
- Payment Terms: L/C, D/A, D/P, T/T
- Supply Ability: 5000 Square Meters per day
- Type Fiberglass: E Glass
- Material: Fiberglass
- Silica Content: ≥96%
- Weave: Stain
- Width: 92,100cm
High Silica Cloth Fabric, High Silica Fabric, Fiberglass Silica
Fabric.
Support and Services:
Technical Support and Service for High Silica Fiberglass Fabric
We provide a comprehensive range of technical support and service
for our High Silica Fiberglass Fabric. Our team of experts are
dedicated to helping you find the best solution for your individual
needs. We offer a wide variety of services to help you get the most
out of your fabric, including:
- Product selection advice
- On-site installation assistance
- Training and education
- Troubleshooting and repair
- Preventative maintenance
- Consultation and design
If you have any questions about our High Silica Fiberglass Fabric
or our technical support and service, please do not hesitate to
contact us.
More Silica Cloth Specification
| Product Name | Model | Width mm | Working Temperature℃ | Weight g/㎡ | SiO2 Content |
|
| High Silica | JNHS-300-92 | 92 | 1000 | 300 | ＞96% |
| High Silica | JNHS-450-92 | 92 | 1000 | 450 | ＞96% |
| High Silica | JNHS-600-92 | 92 | 1000 | 612 | ＞96% |
| High Silica | JNHS-600-100 | 100 | 1000 | 612 | ＞96% |
| High Silica | JNHS-600-130 | 130 | 1000 | 612 | ＞96% |
| High Silica | JNHS-880-92 | 92 | 1000 | 880 | ＞96% |
| High Silica | JNHS-880-100 | 100 | 1000 | 880 | ＞96% |
| High Silica | JNHS-1100-92 | 92 | 1000 | 1100 | ＞96% |
| High Silica | JNHS-1100-100 | 100 | 1000 | 1100 | ＞96% |
| Silica Cloth | JNSC-450-100 | 100 | 800 | 600 | 70%±5% |
| Silica Cloth | JNSC-600-92 | 92 | 800 | 600 | 70%±5% |
| Silica Cloth | JNSC-600-100 | 100 | 800 | 700 | 70%±5% |
| Silica Cloth | JNSC-600-152 | 152 | 800 | 700 | 70%±5% |
| Silica Cloth | JNSC-1100-92 | 92 | 800 | 1100 | 70%±5% |
| Silica Cloth | JNSC-1200-100 | 100 | 800 | 1200 | 70%±5% |
| Silica Cloth | JNSC-1200-152 | 152 | 800 | 1200 | 70%±5% |
| High Silica Texturized Cloth | JNSCT-42-92 | 92 | 1000 | 1450 | ＞96% |
| High Silica Texturized Cloth | JNSCT-42-100 | 100 | 1000 | 1450 | ＞96% |
Packing and Shipping:
Packaging and Shipping
High Silica Fiberglass Fabric is usually packaged in rolls, wrapped
with a water-resistant film and then placed in a cardboard box for
shipping.
To protect the product, it is important to ensure that the
packaging is not damaged during transportation. Proper packaging
materials should be used to avoid any moisture, dirt, dust or other
damage.
FAQ:
.
- Q: What is the brand name of High Silica Fiberglass Fabric?
- A: The brand name of High Silica Fiberglass Fabric is Jiangnan.
- Q: What is the model number of High Silica Fiberglass Fabric?
- A: The model number of High Silica Fiberglass Fabric is JNHS-600.
- Q: Where is High Silica Fiberglass Fabric manufactured?
- A: High Silica Fiberglass Fabric is manufactured in China.
- Q: What certifications does High Silica Fiberglass Fabric have?
- A: High Silica Fiberglass Fabric has ISO 9001, NFPA701, and DIN4102
certifications.
- Q: What is the minimum order quantity of High Silica Fiberglass
Fabric?
- A: The minimum order quantity of High Silica Fiberglass Fabric is
100 Meter.
