High Silica Content Non-flammable Fiberglass Cloth for B2B
Applications High Silica Fabrics
Product Description:

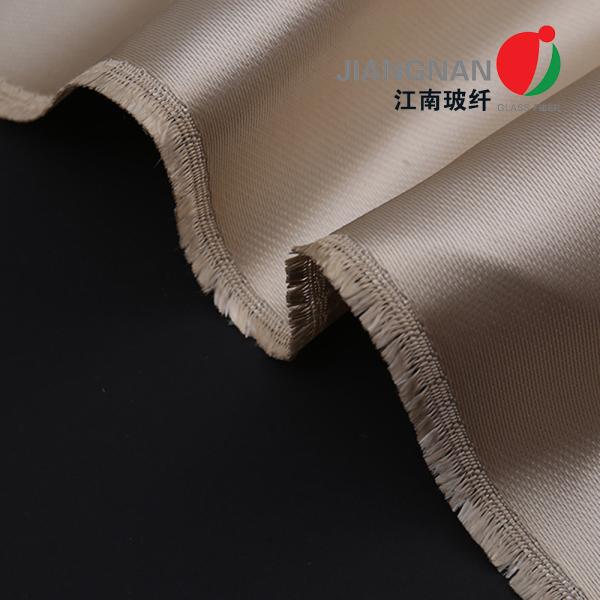

High Silica Fiberglass Fabric is a special type of fabric designed
for various applications, such as Welding Protection, Fire Curtain,
Smoke Curtain and Thermal Insulation. It is made of high-silica
fiberglass and has a silica content of up to 96%. Available in
widths of 50m-100m, it also comes in thicknesses of 0.3, 0.6, 0.8
and 1.3mm. This fabric is highly resistant to alkali and
non-flammable, making it an ideal choice for a variety of
applications.
Features:
- Product Name: High Silica Fiberglass Fabric
- Material: Fiberglass
- Application: Welding Protection, Fire Curtain, Smoke Curtain, Thermal Insulation
- Color: White Yellow
- Temperature Resistance: 1000℃
- Surface Treatment: Pu Coated
- Keywords: High Silica Cloth Fabric, High Silica Fiberglass, High Silica
Fiberglass Cloth, Fiberglass Fabric
Applications:
High Silica Fibreglass Fabric manufactured by Jiangnan with the
model number JNHS-600 has a wide range of applications, such as
welding protection, fire curtain, smoke curtain, thermal
insulation, etc. It is certified by ISO 9001, NFPA701 and DIN4102.
The minimum order quantity is 100 meters and the price is
negotiable. The packing detail is each roll in carton and several
cartons in a pallet. The delivery time is 5-14 days after the
payment and the payment terms are L/C, D/A, D/P and T/T. The supply
ability is 5000 square meters per day. This product comes in two
colors, white and yellow. The width is 92 and 100cm and the weight
is 300, 600, 800 and 1250g/m2. The material used is fiberglass.
This high silica fibreglass cloth fabric is made of high quality
fiberglass silica fabric and has excellent performance in terms of
thermal insulation, flame retardant, wear resistant, chemical
resistant, etc. It is widely used in industrial and commercial
applications.
Technical Parameters:
| Item |
Technical Requirement |
Test Result |
| Width(mm) | 1000±10 | 1002 |
| Weave Style | 8HS Satin | 8HS Satin |
| Warp Counts (ends/cm) | ≥18 | 19 |
| Fill Count | ≥13 | 14 |
Warp Breaking Strength (N/Inch) | ≥ 800 | 965 |
Weft Breaking Strength (N/Inch) | ≥ 500 | 643 |
| Weight (g/m2) | 600± 30 | 616.67 |
| Length (m) | 50.0 | 50.0 |
| Thickness | 0.7 ± 0.1 | 0.724 |
| Silica Content % | ≥ 96 | 97.8 |
| Linear Shrinkage% | 5-10 | 5.2 |
| Working Temperature | 1200 ℃ | 1200 ℃ |
| Coating Pu | 0.8-1% | 0.86% |
Customization:
High Silica Fiberglass Fabric
- Brand Name: Jiangnan
- Model Number: JNHS-600
- Place of Origin: China
- Certification: ISO 9001, NFPA701, DIN4102
- Minimum Order Quantity: 100 Meter
- Price: Negotiable
- Packaging Details: Each Roll in Carton, Several Cartons in a Pallet
- Delivery Time: 5-14 Days after the Payment
- Payment Terms: L/C, D/A, D/P, T/T
- Supply Ability: 5000 Square Meters per day
- Thickness: 0.3,0.6,0.8,1.3mm
- Material: Fiberglass
- Features: Alkali Resistance, Alkali Resistance,Non-flammable
- Product Name: High Silica Fiberglass Cloth Material
- Silica Content: ≥96%
High Silica Cloth Fabric with Alkali Resistance and Non-flammable
Material
Jiangnan JNHS-600 High Silica Fiberglass Fabric is made of premium
quality fiberglass material with silica content of ≥96%. It is
non-flammable and has excellent alkali resistance. The thickness of
this fabric can be customized, ranging from 0.3mm to 1.3mm.
The minimum order quantity for this product is 100 meters. The
price is negotiable. We offer delivery within 5-14 days after the
payment. Payment terms are accepted in L/C, D/A, D/P, T/T. We can
supply up to 5000 square meters per day. Each roll comes with a
carton, several cartons in a pallet.
Support and Services:
Technical Support and Service for High Silica Fiberglass Fabric
We provide our customers with quality technical support and service
for High Silica Fiberglass Fabric. Our experienced team of experts
are available to provide technical assistance with product
selection, installation, troubleshooting, and more.
We understand that our customers have different needs, and as such
we offer a variety of services to meet those needs. Our services
include:
- Product selection advice
- Installation support
- Troubleshooting and maintenance guidance
- Repair and replacement services
- Product warranty coverage
- On-site training and seminars
We are dedicated to providing our customers with the highest
quality technical support and service. Our team is available to
answer any questions you may have and to help you get the most out
of your High Silica Fiberglass Fabric.
More Silica Cloth Specification
| Product Name | Model | Width mm | Working Temperature℃ | Weight g/㎡ | SiO2 Content |
|
| High Silica | JNHS-300-92 | 92 | 1000 | 300 | ＞96% |
| High Silica | JNHS-450-92 | 92 | 1000 | 450 | ＞96% |
| High Silica | JNHS-600-92 | 92 | 1000 | 612 | ＞96% |
| High Silica | JNHS-600-100 | 100 | 1000 | 612 | ＞96% |
| High Silica | JNHS-600-130 | 130 | 1000 | 612 | ＞96% |
| High Silica | JNHS-880-92 | 92 | 1000 | 880 | ＞96% |
| High Silica | JNHS-880-100 | 100 | 1000 | 880 | ＞96% |
| High Silica | JNHS-1100-92 | 92 | 1000 | 1100 | ＞96% |
| High Silica | JNHS-1100-100 | 100 | 1000 | 1100 | ＞96% |
| Silica Cloth | JNSC-450-100 | 100 | 800 | 600 | 70%±5% |
| Silica Cloth | JNSC-600-92 | 92 | 800 | 600 | 70%±5% |
| Silica Cloth | JNSC-600-100 | 100 | 800 | 700 | 70%±5% |
| Silica Cloth | JNSC-600-152 | 152 | 800 | 700 | 70%±5% |
| Silica Cloth | JNSC-1100-92 | 92 | 800 | 1100 | 70%±5% |
| Silica Cloth | JNSC-1200-100 | 100 | 800 | 1200 | 70%±5% |
| Silica Cloth | JNSC-1200-152 | 152 | 800 | 1200 | 70%±5% |
| High Silica Texturized Cloth | JNSCT-42-92 | 92 | 1000 | 1450 | ＞96% |
| High Silica Texturized Cloth | JNSCT-42-100 | 100 | 1000 | 1450 | ＞96%
|
Packing and Shipping:
Packaging and Shipping of High Silica Fiberglass Fabric
High silica fiberglass fabric is typically packed in cartons or
plastic bags. Depending on the size of the fabric, the packaging
material may vary.
The shipping method for high silica fiberglass fabric depends on
the customer's needs. Customers may choose to ship their fabric via
air, land, or sea. The shipping cost and transit time will vary
depending on the customer's location.
For orders of high silica fiberglass fabric, customers should
ensure that their packages are properly labeled, as this will make
the shipping process smoother and faster.
FAQ:
.
- Q: What is the brand name of High Silica Fiberglass Fabric?
- A: The brand name of High Silica Fiberglass Fabric is Jiangnan.
- Q: What is the model number of High Silica Fiberglass Fabric?
- A: The model number of High Silica Fiberglass Fabric is JNHS-600.
- Q: Where is High Silica Fiberglass Fabric manufactured?
- A: High Silica Fiberglass Fabric is manufactured in China.
- Q: What certifications does High Silica Fiberglass Fabric have?
- A: High Silica Fiberglass Fabric has ISO 9001, NFPA701, and DIN4102
certifications.
- Q: What is the minimum order quantity of High Silica Fiberglass
Fabric?
- A: The minimum order quantity of High Silica Fiberglass Fabric is
100 Meter.
