0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion from wholesalers

    Buy cheap 0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion from wholesalers
    • Buy cheap 0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion from wholesalers

    0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : Al3732
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion

    0.4mm Laminated Heat Insulation Shield With Non Conbustible Aluminum Foil Fiberglass Cloth


    1. Description:


    Due to the growing and changing requirement of our customers, Jiangnan offer a wide range of aluminum-coated fiberglass fabrics. Our company's products are quality-proven and made of high-quality materials. This product can be used for high-speed packaging applications and is very effective. In addition, our products have market-leading durability and usability. The aluminum foil glass fiber cloth adopts unique advanced composite technology, and the glass fiber fabric uses a special flame-retardant adhesive to form a dense composite film. The aluminum foil composite surface is smooth, the light reflectivity is high, the longitudinal and transverse stretching force is large, and the air-tight, Waterproof, good sealing performance, durable and other characteristics.

    2. Table 1: Data Sheet of Basic Fiberglass Cloth


    3732 Fiberglass Basic Cloth
    Item Model3732 Fiberglass Fabric
    DescriptionC-Glass/E-glass Industrial Fabric
    Weave Structure1/3 Twill Weave
    Weight430gsm
    Thickness0.43mm
    Yarn TypeWarpG37 1/0 0.7OZ
    WeftG37 1/0 0.7OZ
    Thread CountWarp18±1 ends/cm
    Weft12±1 picks/cm
    Break StrengthWarp6000 N/5cm
    Weft4500 N/5cm
    LOI< 5%
    Working Temperature≤550℃

    3. Table 2: Data Sheet of Final Product Al-3732


    AL3732
    Item ModelAluminum Foil Fiberglass FabricTest Standard
    Weave Structure1/3 Twill Weave
    Aluminum Foil Thickness18μm
    Weight460gsmASTM D3776-96
    Thickness0.45mmASTM D1777-96
    Thread CountWarp18±1 ends/cmGB/T 7689.2-2013
    Weft12±1 picks/cm
    Break StrengthWarp6000 N/5cmGB/T 7689.5-2013
    Weft4500 N/5cm
    ColorSilver
    Working Temperature≤300℃
    Flame ResistaceNon-Combustible
    AdvantagesRadiant Thermal Reflective

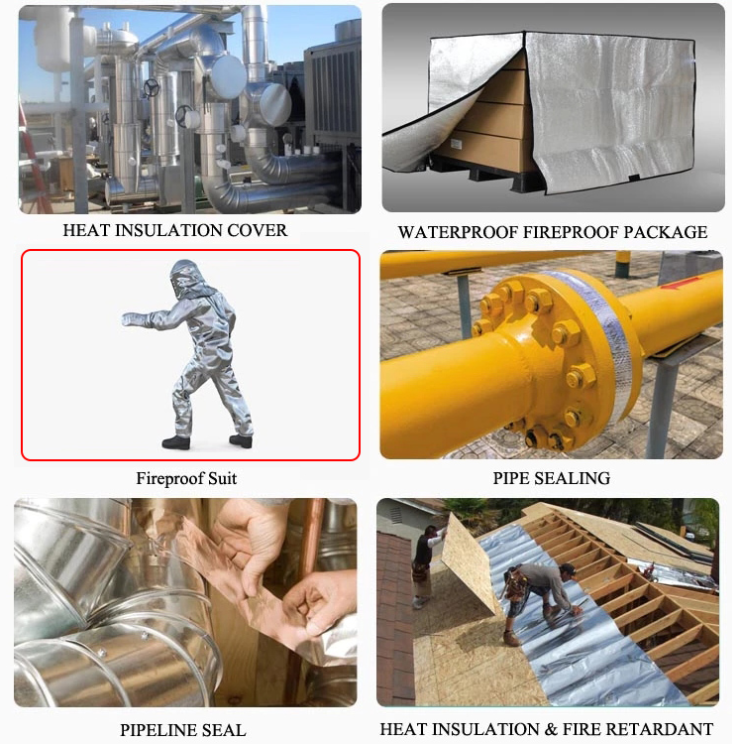

    4. Is Aluminum Foil Cloth a good Refelctor? What is the Aluminum Foil Fiberglass Cloth Application?


    Heat cover and vapor barrier for heat insulation of glass wool, rock wool, mineral wool PEF products and rubber and plastic products. It is suitable for the on-line heat sealing compound of felt, wool board, capillary tube, PEF board tube, rubber plastic board tube, and satisfies the heat insulation requirements of HVAC ducts, cold/warm water pipes, and buildings and buildings.



    5. Product Features:

    • Strong Corrosion Resistance
    • Less Water Vapor Permeability
    • High Tensile Strength
    • Stiffer and Smoother Surface
    • Less Chances of Damage to the Aluminum Foil Surface
    • Light Radiation Resistance

    6. Detail images for Aluminum Foil Cloth


    0.4mm Aluminum Foil Laminated Fiberglass Fabric 9 Micron Anti Corrosion


    7: Other Related Products


    Style No:WeightThickness
    g/m2Oz/ydmminch
    AL75752.210.10.00
    AL76282005.90.20.01
    AL373245013.270.420.02
    ALFW60060017.70.60.02
    AL202560017.70.60.02

    Other thickness and weight can also be customized according to your Requirement


    75<Weight<2000g


    0.1mm<Thickness<3mm
