Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct from wholesalers

    Buy cheap Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct from wholesalers
    • Buy cheap Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct from wholesalers

    Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : Aluminum Foil Fiberglass Cloth
    Certification : ISO 9001 2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct

    AL7628 Heat Protection And Reflective Aluminum Foil Fiberglass Fabric For Flexible Connector Duct


    1. Description:


    The Aluminum Foil was used as heat shield on the glass fiber insulation protection layer, the glass fiber is used as the base cloth and the special fire-resistant adhesive to protect personnel or equipment by reflecting radiant heat. Our aluminum foil-coated glass fiber cloth has many excellent properties such as smooth aluminum foil surface, water impermeability, good air tightness and weather resistance, strong light reflection, good vertical and horizontal stretch resistance, and airtightness.


    Product Construction
    Materlal CompositionMaterial DescriptionValue Standard
    FoilAluminum

    9 Micron


    AdhesivePressure Sensitive Oily Adhesive and Water Base Glue

    Adjust according to different thickness of base fabric


    Fiberglass ClothEach difference Thickness Cloth

    75-2000g




    2. Table 1: Data Sheet of Basic Fiberglass Cloth


    7628 Fiberglass Cloth
    Item Model7628 Fiberglass Fabric
    DescriptionElectronic Fiberglass Fabric
    Weave StructurePlain Weave
    Weight200gsm
    Thickness0.2mm
    Yarn TypeWarpEC9 68 1*0
    WeftEC9 68 1*0
    Thread CountWarp18 ends/cm
    Weft12 picks/cm
    Break StrengthWarp438 N/cm
    Weft350 N/cm
    LOI< 4%
    Working Temperature≤550℃

    3. Table 2: Data Sheet of Final Product Al-7628


    AL7628
    Item ModelAluminum Foil Fiberglass FabricTest Standard
    Weave StructurePlain Weave
    Aluminum Foil Thickness9μm
    Weight210 gsmASTM D3776-96
    Thickness0.2mmASTM D1777-96
    Thread CountWarp18±1 ends/cmGB/T 7689.2-2013
    Weft12±1 picks/cm
    Break StrengthWarp438 N/cmGB/T 7689.5-2013
    Weft350 N/cm
    ColorSilver
    Working Temperature≤300℃
    Flame ResistanceNon-Combustible
    AdvantagesRadiant Thermal Reflective

    4. What is the Aluminum Foil Fiberglass Cloth Application?


    The aluminum foil fiberglass insulating mat composite fabric reflects radiant heat and is the perfect protection for covering equipment,

    it protects industrial wire, cable, hose, hydraulics and equipment cabinets and enclosures.


    5. Product Features:


    It has excellent fireproof, waterproof, tear resistance, sealing and other high performance, it can be widely used for binder to protect pipel steam tube.

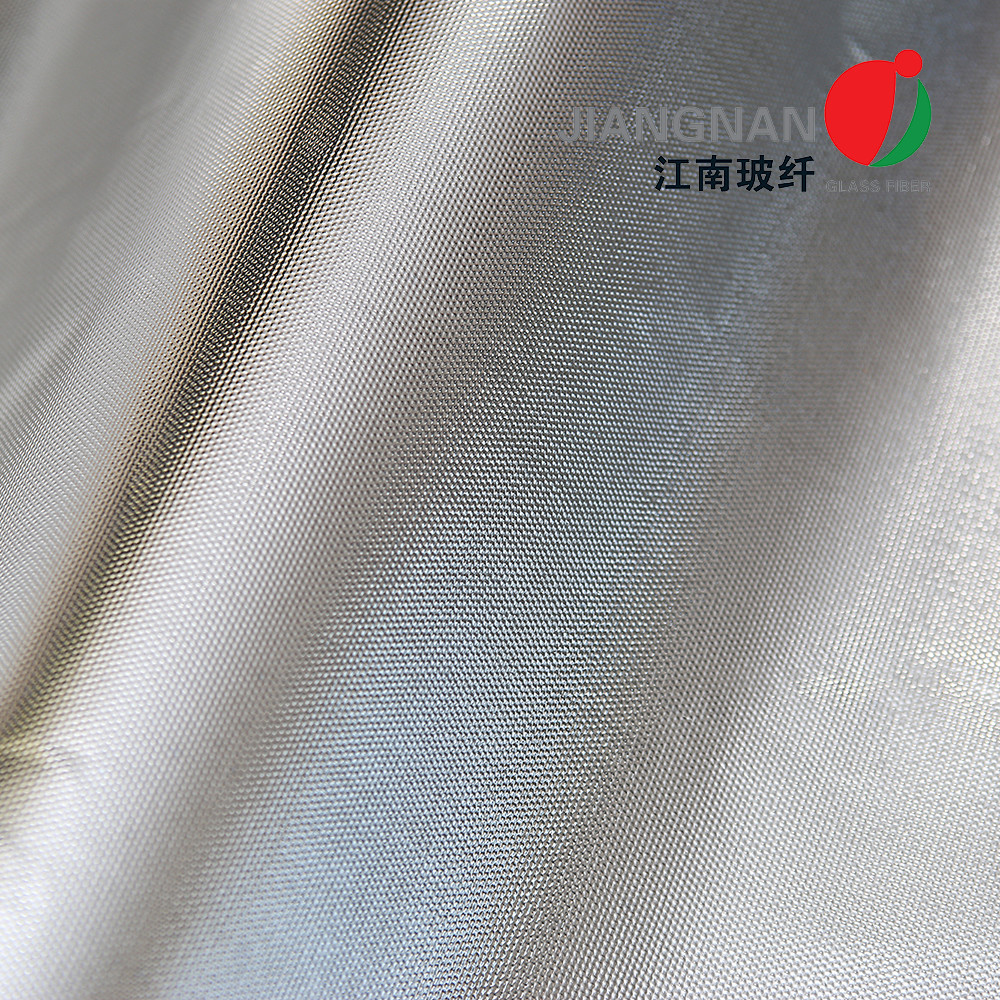

    6. Detail images for Aluminum Foil Cloth


    Reflective Aluminum Foil Laminated Fiberglass Fabric For Flexible Connector Duct


    7: Other Related Products


    Item no.WeaveDensity per cmWeight g/m2ThicknessAluminum Foil ThicknessTensile Strength
    N/5cm
    Warp & WeftWarp & Weft

    AL75


    Plain12*8750.1mm7Micron380*370

    AL7628


    Plain18*12200g/m20.2mm7Micron2025*1620

    AL3732


    3x1 Twill18*12430g/m20.43mm7/18Micron6000*4500

    ALFW600


    Double Plain15*15600g/m20.55mm7/18Micron6000*5000

    AL2025


    Plain8*5.7610g/m20.75mm7/18Micron2025*1216

    AL-M30


    Plain6*3.81020g/m21.2mm7/18Micron3000*2200

    AL-3784


    Satin18*13880g/m20.9mm7/18Micron8000*6000

    Other thickness and weight can also be customized according to your Requirement


    75g<Weight<2000g


    0.1mm<Thickness<3mm
