High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing

    Buy cheap High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing from wholesalers

    Buy cheap High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing from wholesalers
    • Buy cheap High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing from wholesalers
    • Buy cheap High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing from wholesalers
    • Buy cheap High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing from wholesalers

    High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : HT800
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing

    High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing


    1. Description:


    Jiangnan's main products are heat insulation and fire-proof material as well as labor protection commodities, such as fiberglass fabric, glass fiber cloth, fire blanket, welding blanket. HT800 Fiberglass Cloth ( Heat Treatment ) is one of our most popular codes. It is made of C-glass fabric, which is an excellent material for Welding blankets and heat insulation to protect sensitive machinery.
    Jiangnan Heat Treated Fiberglass Cloth with Wire has a short duration working temperature of 600oC. It has many useful characteristics which cause it to have a variety of applications. The heat-treated glass fiber cloth is resistant to abrasion, chemical and oil spills, repellent to water, and is weatherproof.


    2. Datasheet for Heat Treated Fiberglass Cloth


    HT800(Golden)

    1

    Structure

    Satin

    2

    Model of raw yarn (tex)

    Warp
    weft

    CC9 33 4*2

    CC9 300Tex

    3

    Width

    101.6±2cm

    40±0.75 inch

    4

    Thickness

    0.8±0.08mm

    0.03±0.003 inch

    5

    Type of covering

    Heat treatment

    6

    Thickness of covering

    7

    Weight

    880±88g/m2

    26 OZ/YD2

    8

    Density

    Warp
    Weft

    18±1.8 per cm
    13±1.3 per cm

    47.5±4.5 per inch
    33±3.3per inch

    9

    Tensile strength (min)

    Warp
    Weft

    6800N/5cm
    5600N/5cm

    800 Ibs/inch
    550 Ibs/inch

    10

    Oil content

    <0.5%

    11

    Refractoriness

    550ºC

    3. Features:


    1. Heat resistant up to 550 °C,

    2. Anti-corrosion,

    3. Light and flexible in use,

    4. High durability.


    4. Main Applications


    They are high quality and fireproof, widely used in the chemical industry, petroleum, mechanical manufacture, shipbuilding, welding, and fire fighting field.

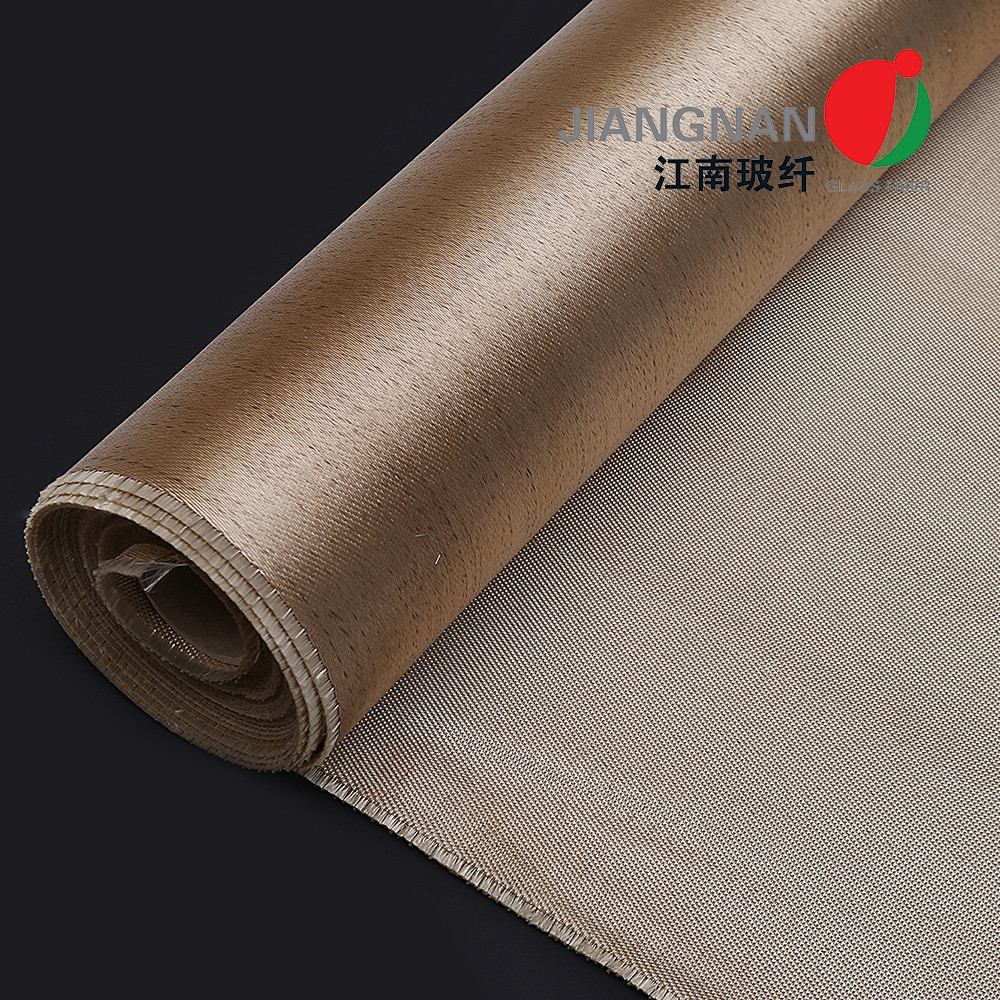

    5. Detail Product Images


    High Strength Satin Heat Treated Woven Glass Cloth For Fireproofing


    6. Packaging Detail Images



    7. Much More Related Products


    Cloth TypeStyleThicknessWeight
    Woven Fiberglass FabricHT37320.4mm430gsm
    HT8000.8mm830gsn
    HT37881.6mm

    1650gsm

    Texturized Fiberglass FabricHT20250.7mm580gsm
    HTM301.2mm1200gsm
    Reinforced Fiberglass FabricHT 666 Reinforced with Wire0.6mm650gsm

    we can also produce other Fiberglass Fabrics, such as Write Fiberglass Fabric, PU-coated Fiberglass Fabric, Aluminum Foil GlasFiber, Silicone-coated Fiberglass Fabric, Acrylic-coated Fiberglass Cloth, Dried Fiberglass Fabrics, etc. Do you have an interest? Please Contact me at any time.


    8. Our Company Services:


    1.If you want to know the detailed information, price, shipping information of other products, we can provide you with it.

    2. If you accept our prices and services, you can contact us to request samples to check the quality, we can provide free samples, but we do not pay the first shipping

    3. You can send your samples or technical parameters to our company, and we will re-order some samples for you according to your requirements within 15 days

    4. If you have any questions about the freight forwarder, we can contact your freight forwarder to arrange the delivery and deliver the goods smoothly.

    5. We will provide the most favorable prices and services, please contact us immediately
