    Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength

    Ask Lasest Price
    Brand Name : Changshu Jiangnan Glass Fiber
    Model Number : Silicone Coated Fiberglass Fabric
    Certification : ISO 9001 2015
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000 square meters per day
    Delivery Time : 15 Working days after payment
    • Product Details
    • Company Profile

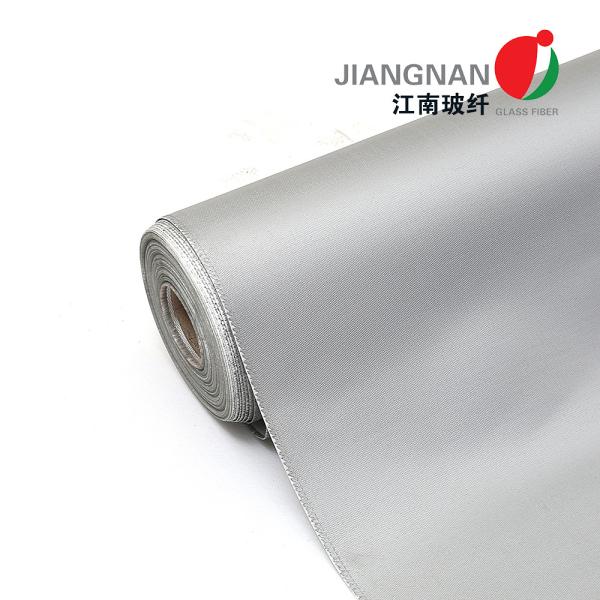

    Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength

    Expansion Joint 3732 510gsm Silicone Coated Fiberglass Fabric


    1. Description:


    What is silicone coating fiberglass cloth?

    silicone coated fiberglass cloth is made with high-temperature resistance, non-toxic fireproof silicone rubber, and heat/flame resistant thermal insulating fiberglass cloth. Jiangnan silicone-coated fiberglass cloth has good resistance to extreme temperatures, with operating temp ranging from -70°C to +260°C.


    What is E-glass Fiberglass Yarn?

    Alkali-free fiber: an alkali metal oxide content is less than 0.8%, which is an alumni Oboro silicate component. Its chemical stability, electrical insulation properties, and strength are very good. Mainly used as electrical insulation materials, glass fiber reinforced materials, and tire cords.

    Silicone-impregnated fiberglass fabric is highly flexible and provides an excellent protection fabric used in insulating blankets and other heat resistant parts. Silicone coating has added water and oil resistance and low smoke and flame retardant.


    Type: E-glass

    Coating: 100/60g on each side

    Structure: silicone+glass fiber+silicone

    Weight:510g/m2

    Flammability: ≤25%

    Strength: 2000/1600 N/50mm

    Thickness: 0.45mm

    Weave: Satin


    2. Technique Data Sheet


    ItemWeightThread Count

    Yarn


    Break strengthAlkali Content
    Basic weightCoating weightWeftWarp
    Silicone Coating Fiberglass Cloth430G/M2160G/M21812EC9 68 1*22000/1600 N/50mmFree

    3732 Silicone Coating Fiberglass Cloth
    Item Model3732 Silicone Coating Cloth
    DescriptionE-glass Industrial Fabric
    Weave Structure1/3 Twill Weave
    Cloth Weight430gsm
    Silicone Coating Weight80g/m2
    Thickness0.43mm
    Yarn TypeWarpEC9 68 1*2
    WeftEC9 68 1*2
    Thread CountWarp18±1 ends/cm
    Weft12±1 picks/cm
    Break StrengthWarp700N/cm
    Weft600N/cm
    LOI< 5%
    Working TemperatureBasic fabric 550 ºC, Silicone coating 260 ºC.
    ColorBlack, Grey, Red
    Fire ResistanceNon-Flame

    3. Silicone Coating Cloth Features


    1. Incombustible
    2. High-temperature resistant
    3. No toxic gas discharge
    4. Good insulation
    5. Without melting or dripping
    6. High strength
    7. No thermal shrinkage phenomenon


    4. Application


    Serve as a fire blanket and welding blanket, foundry splash protect
    Conveyor belt and expansion joints
    Electrical insulation, chemical corrosion resistance, packing material

    Fire Curtain and Smoke Curtain


    5. More Images for Coated Fiberglass Cloth


    Custom Grey Silicone Coated Fiberglass Fabric Heat Protection High StrengthCustom Grey Silicone Coated Fiberglass Fabric Heat Protection High Strength
