    0.5mm Thickness 15Oz Silicone Coated Fiberglass Fabric For Welding Blanket

    Ask Lasest Price
    Brand Name : Changshu Jiangnan Glass Fiber
    Model Number : Silicone Coated Fiberglass Fabric 550°C
    Certification : ISO 9001 2015
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000 square meters per day
    Delivery Time : 15 Working days after payment
    • Product Details
    • Company Profile

    0.5mm Thickness 15Oz Silicone Coated Fiberglass Fabric For Welding Blanket


    0.5mm Thickness 15 Oz Silicone Coated Fiberglass Fabric For Welding Blanket


    1. Description:


    Silicone-coated glass fiber cloth is made of glass fiber cloth coated with specially bonded silicone rubber on one or both sides. Physiologically inert silicone rubber, not only increases the strength, but also has the properties of heat insulation, fire resistance, and ozone resistance, and can prevent the effects of oxygen aging, weather aging, and oil.


    Silicone Coating on FIberglass can be done in two ways:


    Knife Coating: Used For liquid silicone generally for lower coating weight where the Silicone encapsulates the fiberglass fabric giving more softer fabric of lower thickness. [About 40-180g Silicone for each side]


    Calendaring: Dry Silicone is laminated onto fiberglass fabric giving high coating weight pick-up and a fabric that is stronger and thicker up to 5 mm thickness [About 500-1500g Silicone for each side]


    2. Technique Data Sheet


    CharacteristicUnitData
    Weave Structure3*1 Twill
    YarntexWarpWeft
    EC9 136 1*0EC9 136 1*0
    Weightg/m2430
    Thicknessmm0.43
    Theread Countper cmWarp 18Weft 13
    CoatingOne Side Silicone Coated
    Coating Weightg/m280
    Total Weightg/m2510
    Total Thicknessg/m20.48
    Tensile StrengthN/ 2.5cmWarp 2200Weft 1650

    3. Much More Related Products


    Product TypeThickness (mm)Weight (g/m2)Weaving
    E3732-LG10.4mm510Twill
    E3732-LG20.45mm590Twill
    E666-LG10.6mm750Stain
    E666-LG10.7mm850Satin
    E3784-LG10.8mm950Satin
    E3784-LG20.9mm1050Satin

    E3732-LG10.4mm510Twill
    E3732-LG20.45mm590Twill
    E666-LG10.6mm750Stain
    E666-LG10.7mm850Satin
    E3784-LG10.8mm950Satin
    E3784-LG20.9mm1050Satin

    4. Silicone Coating Cloth Features


    1. Durable, abrasion-resistant
    2. Easy to be cut, sewn
    3. Good heat insulation
    4. Good chemical resistance
    5. Superior abrasion resistance
    6. Good weather ability
    7. Non-adhesive, not easy to adhere to any substance

    5. Application


    1. Gasket and for packaging, food, printing, chemical and rubber industries
    2. Removable insulation jackets
    3. Reinforced construction material
    4. Fabric duct-work connector
    5. Fire curtains
    6. Welding blankets
    7. Sealing Material

    6. More Images for Coated Fiberglass Cloth

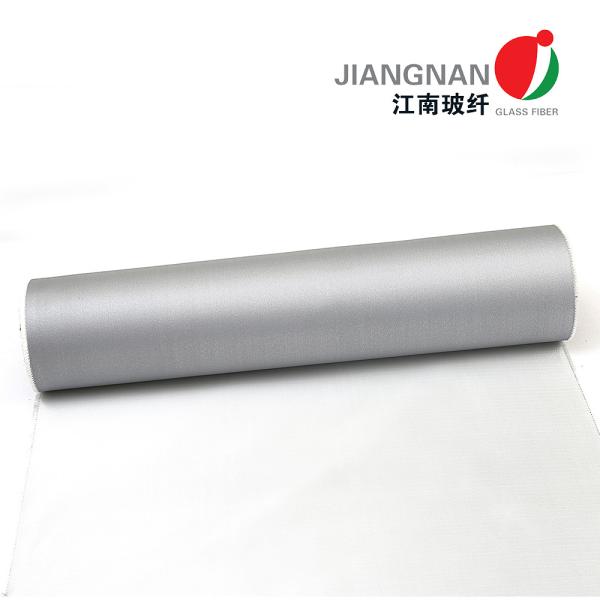

    0.5mm Thickness 15Oz Silicone Coated Fiberglass Fabric For Welding Blanket


    7. Our Production Line




    8. RFQ


    Q1: Are you a factory or a trading company?
    Changshu Jiangnan Glass Fiber Co., Ltd is one of China's leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials.


    Q2: What is your product range?
    1. Coated glass fiber cloth;
    2. Woven Fiberglass cloth
    3. Glass fiber conveyor belt
    4. Finished product (fire blanket & welding curtain)
    5. Fiberglass Yarn


    Q3: What are your delivery terms?
    FOB, CFR, CIF, DDU, DDP, EXW,


    Q4: How about your delivery time?
    A: Generally, it will take 7 to 25 days after receiving your payment bank receipt. The specific delivery time depends on the items and quantity you ordered.


    Q5: Can you provide samples?
    Yes, we can provide a small sample for your quality test free of charge. The freight is payable.
