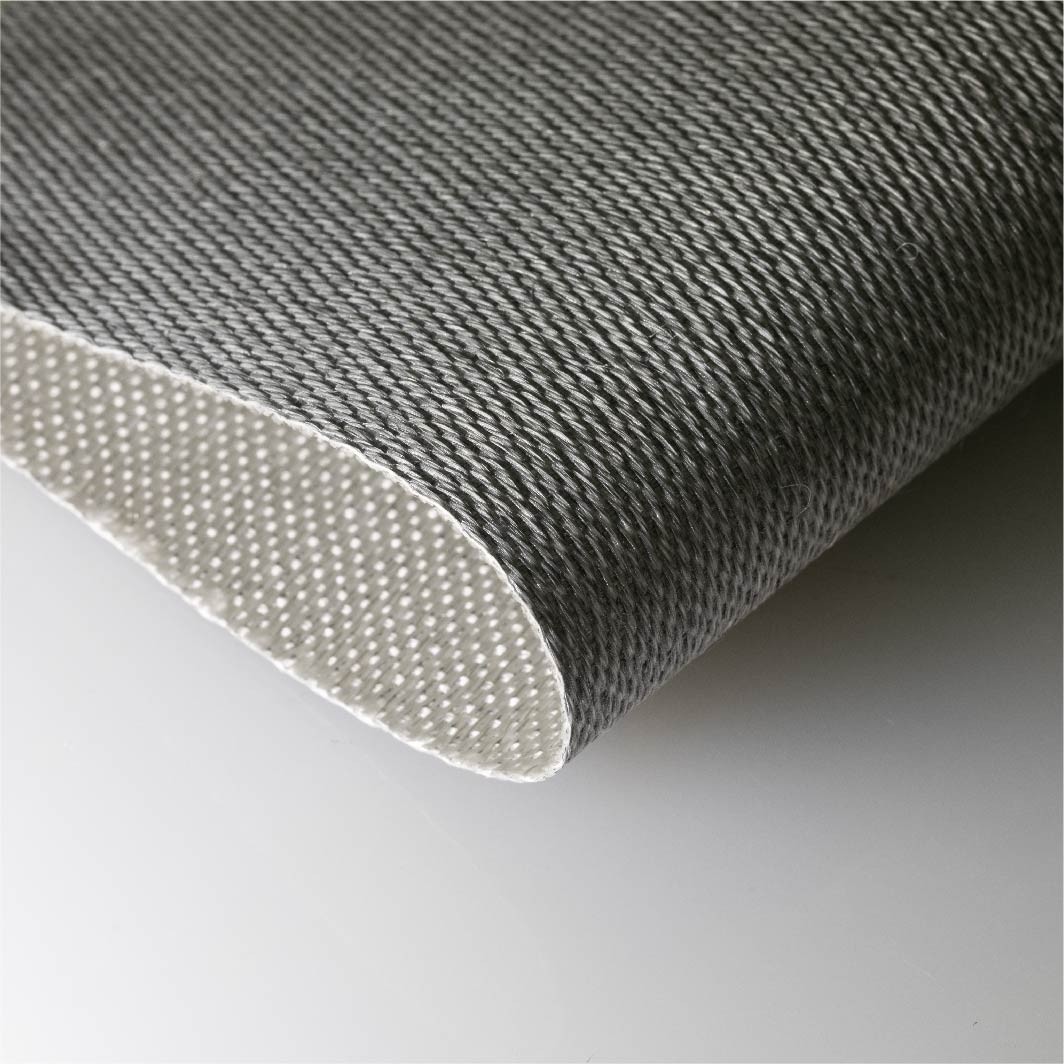

1000mm Width Thermal Insulation Materials 0.8mm Black Pu Coated Fiberglass Fabric

1. Description:

3784 PU Coated fiberglass cloth is a medium weight fiberglass fabric coated with a specially formulated polyurethane polymer on the surface to meet customer demands. The basic cloth of this PU coated fiberglass fabric is 850g/m2 woven fiberglass cloth in satin weaving type. The black Polyurethane coating is 50g/m2 per side. So the coated fiberglass fabric is 950gsm, thickness is 0.9mm. Fiberglass fabric is tear-resistant, high strength, durable and fire-resistant. The PU coating makes it a chemical resistant, electrical insulation, and abrasion-resistant material.

What is 8H Satin Weave Structure?

The eight harness satin is similar to the four harness satin. One weft yarn floats over seven warp yarns and under one. This is a flexible weave and a common application of this weave type is for forming over curved surfaces.

Specification: 3784 Double-sided Pu Coated Fiberglass Fabric

Treatment: Double sides Pu Coating

Total Thickness: 0.8mm

Contact Warp & Weft: 100% fiberglass yarns

Weight: 26.7 oz/yd2

Weave Structure: Satin Weave

Width: 100cm, 120cm and Customized

Thread Count: Warp 47.5/inch, Weft 25/Inch

Temperature Resistance: It withstands temperatures up to 180℃, and 550℃ for short bursts.

2. Table 1: TDS for Basic Cloth

3. Table 2: Pu Coated Fiberglass Cloth Information

4. Properties:

50g/m2 PU coating on each side

Pu coating can be used below 1100℃

Anti chemical acid and alkali

Heat resistant

High strength

Abrasion-resistant

Anti-aging, UV

Resist chemical acid and alkali

PU coating can bear 1100℃ instantaneously

5. Application:

Welding Blanket

Fire Curtain

Fabric Ductwork Connector

Thermal Insulation Jacket

Fire Smoke Control Systems

Thermal Insulation Jackets

Thermal Insulation Blankets

Thermal Insulation Covers

6. Much More Choices for PU coating:

This kind of raw material is normally used on welding & fire protection, thermal insulation jackets, mattress, expansion joint belt, a protective scrim of insulation wool, composite reinforcement

7. Detail Images for PU Coated Fiberglass Cloth

8: Packing

width :100-200cm

Roll length: 40-100m

inner packing: plastic film

Outer packing: carton, or pallet
