    2m Width 0.45mm Satin Weave Silicone Impregnated Fiberglass Cloth Silicone Coated Glass Fiber

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 3732 Double-side Silicone Coated Fiberglass Fabric
    Certification : ISO 9001 2015
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000 square meters per day
    Delivery Time : 15 Working days after payment
    • Product Details
    • Company Profile

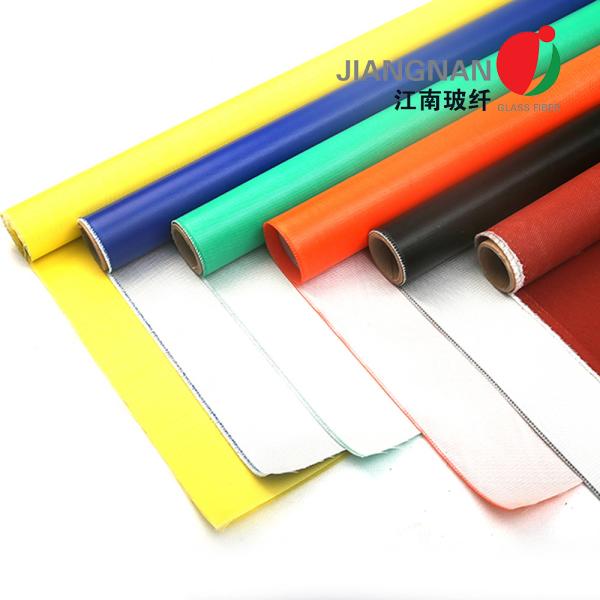

    2m Width 0.45mm Satin Weave Silicone Impregnated Fiberglass Cloth Silicone Coated Glass Fiber

    Heat Insulation 590g/M2 Silicone Coated Fiberglass Cloth Fireproof Colored


    1. Description:


    What is silicone coating fiberglass cloth?


    Knife coating is one popular technique for the coating of textile materials. Because the layers of the applied coating are usually very thin, the rheology of the coating is of primary importance. Rheological properties are controlled mostly by the choice of polymer.
    silicone coated fiberglass cloth is made with high-temperature resistance. Jiangnan silicone-coated fiberglass cloth has good resistance to extreme temperatures, with operating temp ranging from -50°C to +260°C.


    Type: E-glass

    Coating: 130g on each side

    Structure: silicone+glass fiber

    Weight:17oz/yd2

    Flammability: ≤25%

    Thickness: 0.45mm

    Weave: Plain

    LifeTime: 10 Years under normal environment

    Dielectric Constant: 3-3.2

    Breakdown Voltage: 20-50 KV/MW


    2. Technique Data Sheet


    3732 Silicone Coating Fiberglass Cloth
    Item Model3732 Silicone Coating Cloth
    DescriptionE-glass Industrial Fabric
    Weave Structure1/3 Twill Weave
    Cloth Weight430gsm
    Silicone Coating Weight160g/m2
    Thickness0.43mm
    Yarn TypeWarpEC9 68 1*2
    WeftEC9 68 1*2
    Thread CountWarp18±1 ends/cm
    Weft12±1 picks/cm
    Break StrengthWarp700N/cm
    Weft600N/cm
    LOI< 5%
    Working TemperatureBasic fabric 550 ºC, Silicone coating 260 ºC.
    ColorBlack, Grey, Red
    Fire ResistanceNon-Flame

    3. Much More Related Products


    How to choose Knife Coating Silicone Coating fiberglass fabric?


    Knife Coating Silicone Coating Differences between Premier and Industrial Quality
    Premier QualityIndustrial Quality
    1LoomstateHigh-speed Rapier Weaving MachineNormal Dornier (small weaving defects might occur occasionally)
    2SiliconeWet, High-Quality Silicone RubberDry, Standard Silicone Rubber
    3AppearanceShiny and TackyDull but Smooth
    4PerformanceStrong Adhesion Strength Between Silicone Fabric, High Abrasion ResistanceNormal Adhesion Strength Between Silicone Fabric, Normal Abrasion Resistance, silicone might be peeled or scratched off in some particular circumstances
    5ApplicationMostly for Removable Insulation JacketsMostly for Welding, But Also for Economic Removable Insulation Jackets

    Premier QualityThickness (mm)Weight (g/m2)Weaving
    E7628-LG10.2mm230Plain
    E7628-LG20.23mm280Plain
    E3732-LG10.4mm510Twill
    E3732-LG20.45mm590Twill
    E666-LG10.6mm750Stain
    E666-LG10.7mm850Satin
    E3784-LG10.8mm950Satin
    E3784-LG20.9mm1050Satin
    Other Thickness and Weight can be Customized

    Industrial QualityThickness (mm)Weight (g/m2)Weaving
    E7628-SG10.2mm230Plain
    E7628-SG20.23mm280Plain
    E3732-SG10.4mm510Twill
    E3732-SG20.45mm590Twill
    E666-SG10.6mm750Stain
    E666-SG10.7mm850Satin
    E3784-SG10.8mm950Satin
    E3784-SG20.9mm1050Satin
    Other Thickness and Weight can be Customized

    4. Silicone Coating Cloth Features


    Good chemical resistance

    Superior Release Non-stick surface

    Temperature range from -70C to +260ºC

    High Intensity

    Nonflammable

    Good weather ability

    Antibacterial, moisture-proof

    Dielectric constant: 3-3.2

    Breakdown voltage: 20-50KV/MM

    Low shrinkage:<1%


    5. Application


    Silicone coated fiberglass fabric. With a high temperature, fire retardant, insulation, corrosion resistance, anti-aging, and other features. Silicone coated fiberglass fabric is widely used in electrical insulation, non-metallic compensator, flexible connectivity, and as a fire blanket, fire retardant curtain temperature materials, has also been used in building sealed, high-temperature corrosion conveyor belt and other fields.
