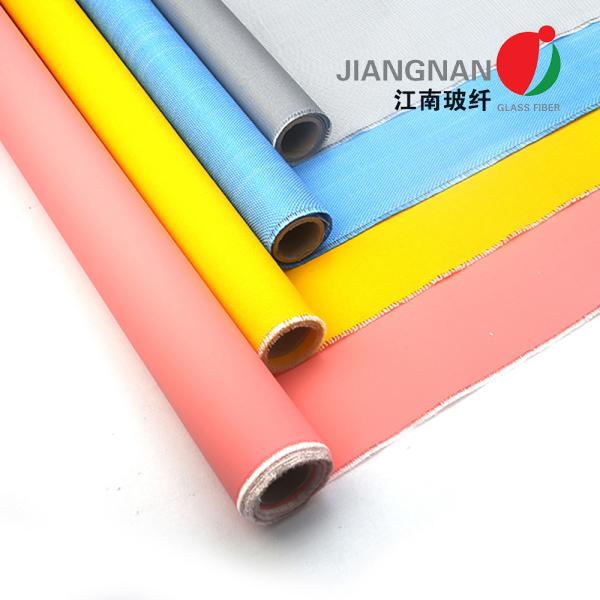

High Performance 18oz Blue Silicone Coated E-Glass Fiberglass Fabric

1. Description:

What is silicone coating fiberglass cloth?

Silicone-coated fiberglass cloth is based on fiberglass cloth and produced by coating or calendering. It is made of high temperature resistant, corrosion-resistant, high strength glass fiber cloth, and through the organic silicone rubber calendering or impregnating. It is a new type of composite material with high performance and multiple applications. It is made of a fiberglass base fabric and coated on 1 or 2 sides with a specially compounded iron oxide red silicone rubber or manganese iron black silicone. They have excellent electrical insulation, thermal insulation, and chemical resistance. The silicone coating is durable and wear-resistant to withstand high-temperature heat. It extends service life while providing higher oil and water resistance and electrical insulation than uncoated fabrics.

Type: E-glass

Coating: 130g on each side

Structure: silicone+glass fiber

Weight:17oz/yd²

Flammability: ≤25%

Thickness: 0.45mm

Weave: Plain

LifeTime: 10 Years under normal environment

Dielectric Constant: 3-3.2

Breakdown Voltage: 20-50 KV/MW

2. Technique Data Sheet

3. Much More Related Products

How to choose Knife Coating Silicone Coating fiberglass fabric?

4. Silicone Coating Cloth Features

Silicone coated fabric flexible connector has the advantage of energy-saving, air duct using a variety of high-performance non-metallic organic materials and inorganic materials with several kinds of metal additives, the fire-resistant grade is A1 level (non-combustible), which is acid and alkali resistance, pressure resistance, anti-aging, flexibility, etc. It’s used for flexible connection of air conditioning, anti-corrosion, smoke control, radiation prevention, and purification ventilation systems.

5. Application

Industry Conveyor belt and flexible hoses, expansion joints.

Serve as welding blankets, foundry splash protection, heat protection quilt.

Acoustic insulation of piping works

Electrical insulation, chemical resistant, UV light, abrasion and contamination resistance, packing material.

Others: Apart from the above application, silicone fiberglass fabric can also be used as sealing material, temperature resistance and anti-corrosion conveyer belt and packaging material.

6. More Images for Coated Fiberglass Cloth

7. Our Production Line

Engage in continuous innovation and high-quality leads to a bright future.

Changshu Jiangnan Glass Fiber Co., Ltd is one of the leading professional manufacturers and exporters of fiberglass composite and thermal resistance materials in China. The Company was established in 1956 and it is located in the famous Chinese cultural and historic city –Changshu. The plant covers a total area of more than 70,000 square meters. It is only 80km from Shanghai port and 200km from Ningbo port. The superior location makes it enjoy a pleasant climate all year round and convenient transportation facilities, such as by the Highway along the Yangtze River, Sujiahang Highway, and Changshu Port.

Presently, we have adopted the advanced high-speed rapier weaving machine, three twist yarn machines equipped with variable frequency unit controllers, and two-meter-width coating equipment to ensure the leading supplier to the market with powerful output and guaranteed quality. Jiangnan produces over 8,000 tons of fiberglass yarn, 50 million square meter alkali-resistant fiberglass mesh, 2.4 million pieces of fire blankets, 10 million meters of fiberglass cloth with silicone, polyurethane, Acrylic, EPDM coating, and 8 million square-meter of fabric used in the electronic industry and fireproof. The products are widely used in the field of construction, transportation, electricity, insulation material, wind power generation, and smoke curtains.

Moreover, our production and quality control team has more than 30 years of development and research experience in various fiberglass products. Meanwhile, Jiangnan has its own fire-test laboratory, according to the latest fire blanket standard. We have routine and extensive cooperation with world-leading testing organizations. We also have our own fiberglass yarn raw material subsidiary in Shandong - Shandong Jinming Glass Fiber Co., Ltd. Additionally, Jiangnan has an R&D investment and production capacity for blended fiberglass fabrics and special glass fiber fabrics.

Jiangnan and its products have been certified by various certification bodies and organizations with a number of certifications like ISO9001:2015 Quality Systems, ISO14001:2014 Environmental Systems, BSI Kitemark，LPCB, TUV, Australian QAS, and other certificates. Jiangnan has cooperative partners across several countries like America, Europe, Australia, Japan, Korea, the Middle East, and other countries.

Jiangnan will continue to make efforts to be the leader with competition and creativity in the global industries based on our core corporate values of "Superior Quality, High Integrity, Continuous Innovation"!
