    Fireproof Fiberglass Fabric High Silica Fabric Glass Fiber Cloth

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : High Silica Cloth
    Certification : ISO 9001 2015, BS EN 1869
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 8000m2 Per Day
    Delivery Time : 10~15days after got payment
    • Product Details
    • Company Profile

    Fireproof Fiberglass Fabric High Silica Fabric Glass Fiber Cloth

    Fireproof Fiberglass Fabric High Silica Fabric Glass Fiber Cloth


    1. Description:

    High Silica Fabric is made of silica fiberglass. It is an inorganic fiber, that contains more than 96% SiO2. It's resistant to high temperatures (melting point) 1700℃, and longtime service temperatures 900℃. It can work for 10 minutes at 1450℃ and keeps a good state at 1600℃ for 15 seconds, for its properties of chemical stability, high-temperature resistance, and ablation resistance. It is widely used in aviation, aerospace, metallurgy, chemical, building material, and fire-fighting industries.


    2. Technique Data Sheets for High Silica Cloth

    1WEAVESATIN 8HSTesting Method
    2Width92cm36.2inchDIN EN 1773
    100cm39.4inch
    86cm33.1inch
    3SiO2 Content≥96%-
    4Linear shrinkage ( 1000C 30min)<7.10%-
    5Area Shrinkage( 1000C 30min)<13.0%-
    6ColorWhite / Golden-
    7Thickness1.3±0.1mm0.051inchDIN EN ISO 5084
    8TreatmentHydrochloric acid treatment-
    9Weight1100g/m232.4OZ/YD2DIN EN 12127
    10Thread countWARP20 per cm51 per inchDIN EN 1049-2
    WEFT15 per cm38 per inchDIN EN1049-2
    11Tensile strengthWARP≥1100EN ISO 13934-1
    N/InchWEFT≥900EN ISO 13934-1
    12Service temperatureUp to 1100ºC-

    3. Features:

    1. SiO2 Content ≥ 96%

    2. Soft point nearly 1700oC, long-period service at 1000oC

    3. Low thermal conductivity

    4. Low thermal shrinkage

    5. Good Chemical Stability

    6. Good Electrical Insulation

    7. Good Process Performance

    8. Non-asbestos, zone-pollution


    4. Application:

    High temperature resistant, insulation and sealing material

    High-temperature ablation resistant material

    Fireproof material for fireproof protective cloth, fireproof curtain

    Dust collection in media of high-temperature gas

    Filter for molten metal

    Extinguisher insulation material

    Protective material for welding

    electricity insulation material

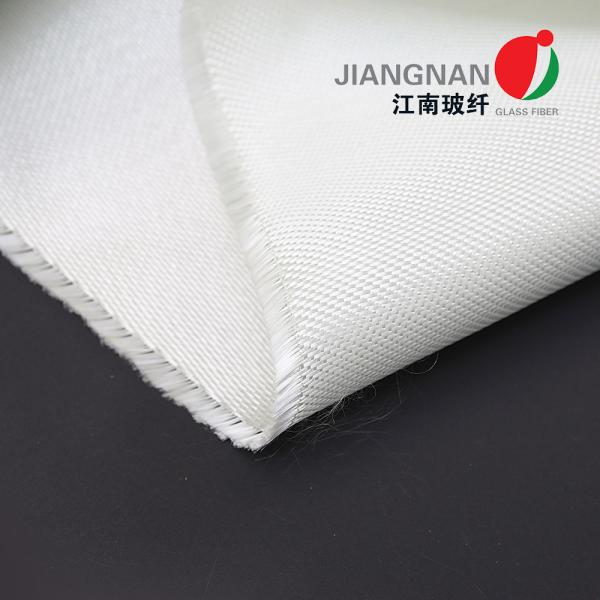

    5. Product Detail Images



    6. More Silica Cloth Specification


    Product NameModelWidth mmWorking Temperature℃Weight g/㎡SiO2 Content
    High SilicaJNHS-300-92921000300>96%
    High SilicaJNHS-450-92921000450>96%
    High SilicaJNHS-600-92921000612>96%
    High SilicaJNHS-600-1001001000612>96%
    High SilicaJNHS-600-1301301000612>96%
    High SilicaJNHS-880-92921000880>96%
    High SilicaJNHS-880-1001001000880>96%
    High SilicaJNHS-1100-929210001100>96%
    High SilicaJNHS-1100-10010010001100>96%
    Silica ClothJNSC-450-10010080060070%±5%
    Silica ClothJNSC-600-929280060070%±5%
    Silica ClothJNSC-600-10010080070070%±5%
    Silica ClothJNSC-600-15215280070070%±5%
    Silica ClothJNSC-1100-9292800110070%±5%
    Silica ClothJNSC-1200-100100800120070%±5%
    Silica ClothJNSC-1200-152152800120070%±5%
    High Silica Texturized ClothJNSCT-42-929210001450>96%
    High Silica Texturized ClothJNSCT-42-10010010001450>96%
