1650g C Glass 3788 Fiberglass Cloth industrial Material white color

Product Description:

Style 3788 is a 52 ounce/square yard, 12 strands of satin weave fiberglass fabric. We have 200 yards of 38 inches long 3788 in 504 Volan and 627 silane finishes, some with 497A finishes. The total size of the cloth is 39.5 inches, excluding the woven outer edge in the photo. All paper rolls are rolled on a 2-inch pvc tube, and are wrapped with plastic and other cushioning materials, and are wrapped with corrugated paper on the outside. Except for the outermost part, there is no tape anywhere on the cloth or any packaging. There are four labels with style, width, tracking number and code, oz/sq yd and construction data on each roll of paper. This is not an industrial fabric, but a high-strength aerospace fabric.

Table 1: 3788 Product Description

Product Features:

Used in the temperature from -70ºC to 550ºC

Resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years

High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM

Good flexibility and high surface friction

Chemical corrosion resistance

Product Application:

This is a high temperature, heat and flame resistant thermal insulating fiberglass fabric fabricated from high quality fiberglass yarns that will not burn and will withstand continuous exposure to temperatures 550°C.

This high temperature fabric provides thermal insulation and personal protection. It's often used to fabricate insulated equipment covers, welding curtains and blankets.

This material resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.

Our Services

1. Your inquiry related to our products will be replied within 24 hours.

2. Well-trained and experienced staffs to answer all your inquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on better quality.

5. Guarantee samples quality same as mass production quality.

6. Flexible production size and package meets customers demands.

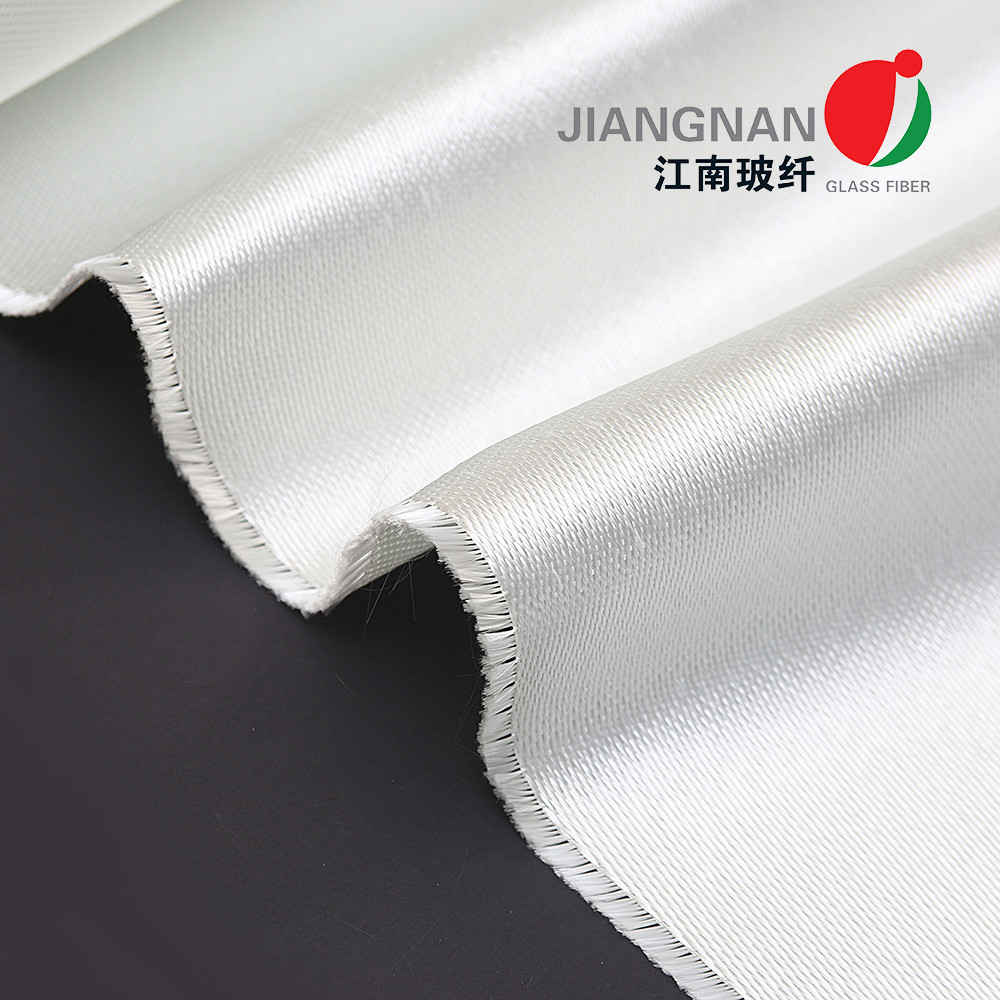

More Detail Images

The 12 harness satin weave is similar to the 8 harness satin except that one yarn passes over 11 of the opposing yarn and so on.

52 oz/sq yd style 3788 is a good example of this. Here is some details images for 12H Satin Fiberglass cloth.
