0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric

Changshu Jiangnan Glass Fiber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric from wholesalers

    Buy cheap 0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric from wholesalers
    • Buy cheap 0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric from wholesalers
    • Buy cheap 0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric from wholesalers
    • Buy cheap 0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric from wholesalers

    0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 666 Fiberglass Fabric with Stainless Steel Wire
    Certification : ISO9001:2015
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 5-14 Days after the Payment
    Price : Negotiable
    • Product Details
    • Company Profile

    0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric

    0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric


    1. Production Description:


    Changshu Jiangnan manufactures various fiberglass fabrics with 316 stainless steel insertion. These fabrics provide higher strength when exposed to extreme temperatures compared to plain fiberglass fabrics. These fabrics are available with various coatings, including PU, Silicone, Vermiculite and more. These wire-inserted fabrics are easy to fabricate and make finished parts highly durable in extreme temperature environments. Compared with other manufacturer's 304 Satinless Wire fiberglass fabric, our company provides fabrics with better surface quality and softer fabric.


    2. Specification


    Table 1: TDS Document

    666 Stainless Wire Fiberglass Fabric
    Weave8H Satin
    Thickness0.55+/-0.05mm
    Width100/120/155cm or customized
    Length50/100m or customized
    Weight6500g/m2
    Yarn TypeG75/2+Satinless Wire
    Warp and Weft Density39*38/In
    Warp and Weft Tensile Strength2237*2316 (N/2.5cm)
    ColorWhite
    PackageCarton Box or Woven Bag

    Table 2:Safety Data Sheet

    E-glass fiberglass yarn is a kind of glass with a very low alkaline content. Its composition that is Oxides is within the following percentages, our products are harmless to human body.


    SiO250.8-54%
    Alkaline Oxides (Na2O,K2O)<1%
    CaO21-24%
    MgO<2%
    B2O36-10%
    AhO313-15%
    TiO2<0.8%
    Fe2O3<0.5%
    F2<1%

    3. Product Features:

    • Good Chemical Resistance
    • Good rot and mildew resistance and tensile strength
    • An alternative to asbestos based textiles
    • A high-performance very high temperature fabric, used in almost all industries for heat protection
    • Used at 550℃ continuous, If exposed to high temperature between 315℃ to 550℃ for an extended period of time the fabric may become stiff and brittle.
    • Available with specialty coatings such as Acrylic, Aluminium foil, Dyeing, Heat treatment, Silicone rubber, Polyurethane, etc.

    4. Applications:

    • Heat shields
    • Welding curtains
    • Stress relieving
    • Removable insulation covers
    • Fire blankets
    • Fire curtains
    • Expansion joints
    • Flue ducts .

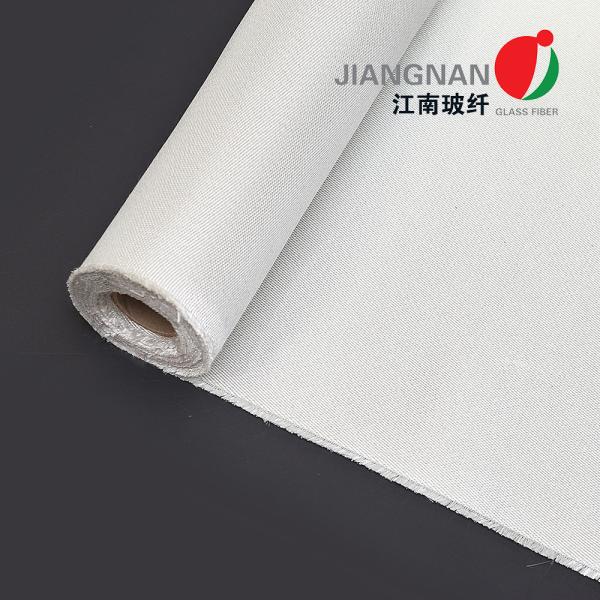

    5. More Pictures for Product and Package

    0.6mm Alkali Free E Wire-Inserted High Temperature Fiberglass Fabric


    6. Related Products (Filament Fiberglass Fabric)
    1000F/550℃; Filament Fiberglass Fabric
    NoTypeWidth (mm)Weight(g/m2)Thickness (mm)Weave
    176281272050.22Plain
    33732107 127 157 2074300.41/3 Twill
    4FW600100 120 1556000.36D-Plain
    5666 ss107 127 157 207 2546000.68HS
    63784107 127 157 207 2548700.88HS
    73786107 127 157 207 25414501.212HS
    83788107 127 157 207 25416501.612HS
