    100% Fiberglass 7628 lightweight Plain woven fiberglass cloth for electronic Insulation materials

    Ask Lasest Price
    Brand Name : Changshu
    Model Number : 7628
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    100% Fiberglass 7628 lightweight Plain woven fiberglass cloth for electronic Insulation materials

    100% Fiberglass 7628 Lightweight Plain Woven Fiberglass Cloth For Electronic Insulation Materials


    1. Descriptions:


    Jiangnan electronical fiberglass fabric is made by high quality E glass fiber filament yarn. 7628 glass is woven by EC9 68x1 Z28 starch fiberglass yarn, 9um fiber diameter formed through 800 holes bushing. E-Glass Filament Loomstates are made of continuous fiberglass yarns, therefore it can be produced in many different kinds of weaving structure, and the surface of this fabrics appear very smooth and shiny. This kind of fabrics have the same properties of Texturized fiberglass fabrics, it is a ideal fabric for all kinds of finish treatments

    During wrapper, the fiberglass yarn was further finished in the slasher with material protecting the yarn from mechanical friction. This process can make sure the final glass cloth minimum flaws, very neat, smoothly that can be uniformly composite with copper sheet.


    2. Specifications:


    7628 Fiberglass Fabric Technique Data sheets
    TypeElectrical Fiberglass Fabric
    Weight180g/m2
    Width1.27m or Customized
    Roll Length50m, 100m, 150m, 200m
    Temperature Resistance-70°C to 550°C
    Kniting TypePlain
    Glass Yarn TypeE-glass or C-glass
    Warp/Weft Yarn TypeG75/G75
    WeavePlain Weave

    4. Product Application


    PTFE coated glass cloth and other coating material.
    Copper clad lamination
    Insulation board
    Fire prevention cloth
    Reinforce plastics and composites
    Aircraft, automobiles
    Boat, surfboard building
    Bath tubs and enclosures, hot tubs building
    Water tanks, swimming pools
    5. Product Features
    Neat fabric surface, even thickness
    Good resin wet out and easily heat clean
    Good for further process, coating and lamination
    Available silane, starch sizing

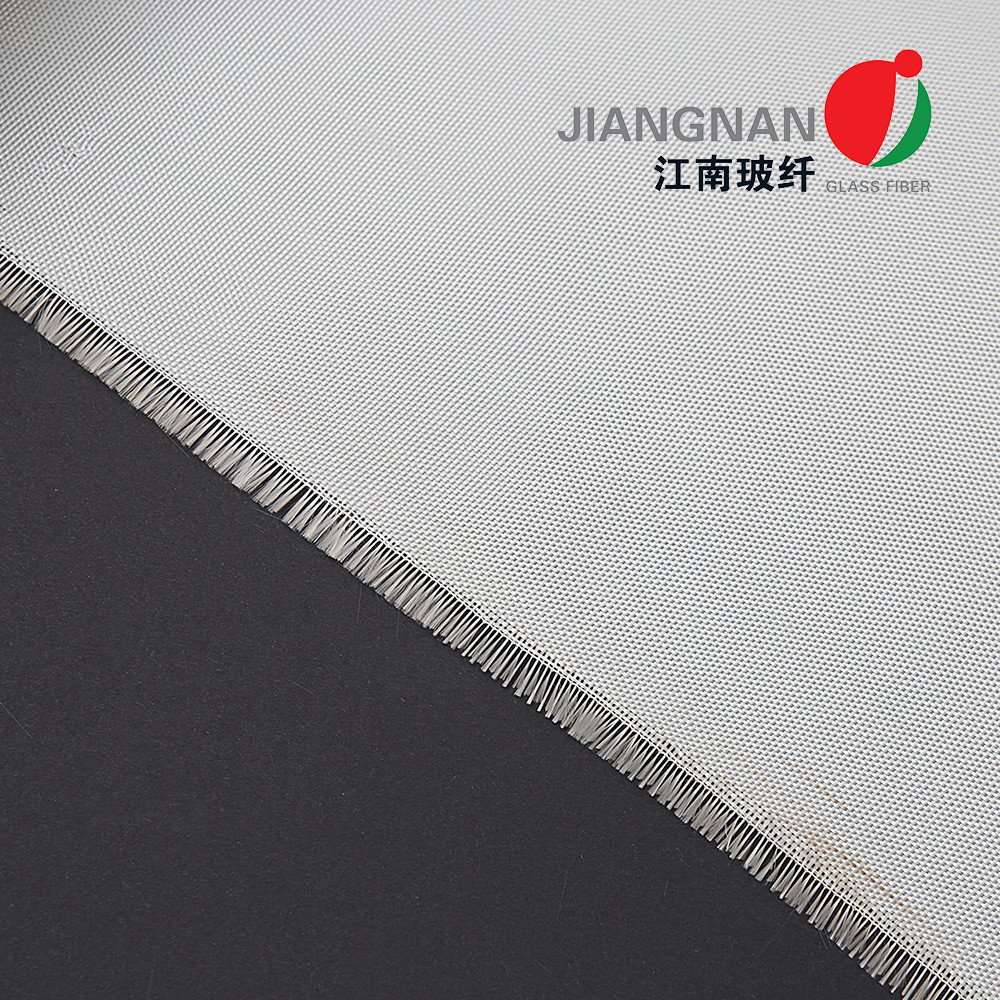

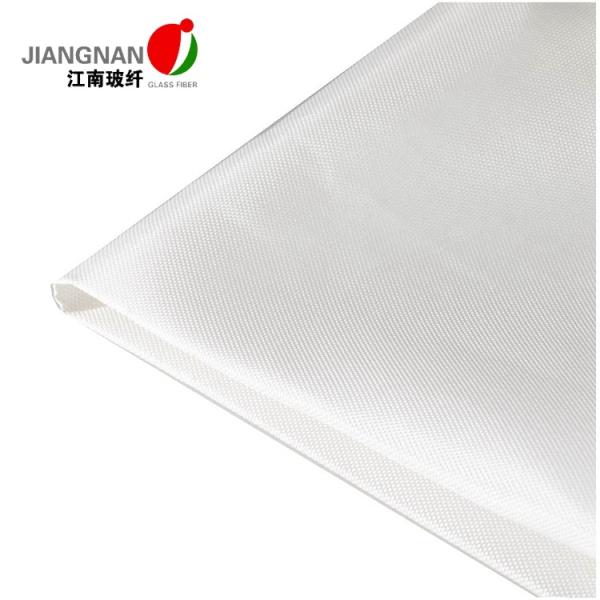

    6. More Pictures for Product and Package
    100% Fiberglass 7628 lightweight Plain woven fiberglass cloth for electronic Insulation materials

    7. Related Products (If you want to other different thickness for fiberglass fabric)


    Fiberglass Cloth Roving
    Item NameThickness (mm)Weight (g/m2)WeaveWidth Length (cm)Remarks
    E76280.18180Plain127All Size Can be Customized
    C76280.2200Plain100/130/150
    CW2800.28280Plain102
    E37320.384301/3 Satin100/120/150/180/200
    C37320.384301/3 Twill100/120/150/180/200
    25230.38380Plain100/120/150/180/200
    E6660.66308H Satin100/120/150/180/200
    C6660.66308H Satin100/120/150/180/200
    E37840.88508H Satin100/120/150/180/200
    C37840.88508H Satin100/120/150/180/200
    E37861.28508H Satin100/120/150/180/200
    C3786a1.2100012H Satin100/120/150/180/200
    C3786b1.2120012H Satin100/120/150/180/200
    C3786c1.2130012H Satin100/120/150/180/200
    E37881.6165012H Satin100/120/150/180/200
    C37881.6165012H Satin100/120/150/180/200
