    High temperature fire resistant 1/3 Twill 0.4mm 430gsm 3732 Woven glass Fiber

    High Temperature Fire Resistant 1/3 Twill 0.4mm 430gsm 3732 Woven Glass Fiber


    1. Product Description:


    Jiangnan 3732 fiberglass fabric is a kind of industrial fabric woven in cross weave method with E-glass fiberglass roving. The glass fabric is weighed at 430gsm. 3732 has 1/3 Twill weave, it is also called cross twoll or break twill weave. As compared to plain weave fabrics, the twill weave offers greater conformability and delivers a slight edge in strength. It is a flexible and loose structural weave with higer density. This kind of material is frequently used for aerospace applications and offers excellent wet out.


    2. Table 1: 3732 Product Description


    Product NameFire Resistance Fiberglass Cloth
    Material100% Fiberglass Yarn
    ColorWhite
    Thickness0.43mm
    Weight430g/m2
    Yarn Type (Tex)G37 1/0; G37 1/0
    Yarn Count (Thread)18*12
    Width1.00m, 1.20m, 1.50m or Other sizes can be customized
    Length50m,100m or Other sizes can be customized
    Breaking Strength (Warp/Weft)6000*4500N/5cm

    3. Product Features:


    1. Easy to work with high conformability

    2. Provides an edge on strength over standard plain weave fabrics

    3. Cures transparent

    4. This fabric has good performance in anti-chemical, fireproofing, thermal and durability.


    4. Application:


    1. Expansion Joint and Piping

    2. Aerospace application

    3. Basic Material for Coating, Impregnating and Laminating

    4. This kind of Fiberglass Fabric can be impregnated with resin easily.

    5. It is widely used in glass fiber Reinforced plastics industry.

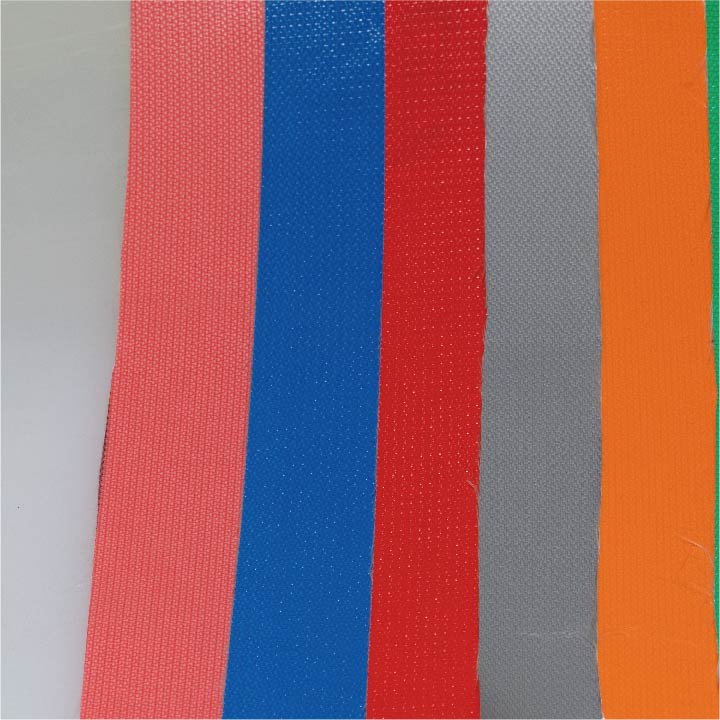

    Pu Coating
    Silicone Coating
    PTFE Coating

    5. Details Image


    High temperature fire resistant 1/3 Twill 0.4mm 430gsm 3732 Woven glass Fiber

    High temperature fire resistant 1/3 Twill 0.4mm 430gsm 3732 Woven glass Fiber


    6. High Quality Control


    The fiberglass yarns are supplied by our company, it has 10% more strength, much softer and more beautiful surface than normal product. Our company produces glass fiber yarn raw materials and the most advanced loom. Therefore, our glass fiber cloth quality is much better than other suppliers in China and faster production rate.


    7. Related Products (Fireproof Fabric Series)
    NoTypeWidth (mm)Weight(g/m2)Thickness (mm)Weave
    17781107 127 157 207 254300±80.228HS
    27581107 127 157 207 254300±80.238HS
    33732107 127 157 207 254425±80.41/3 Twill
    4332107 127 157 207 254427±80.364HS
    5666107 127 157 207 254640±200.68HS
    63784107 127 157 207 254870±200.88HS
    73786107 127 157 207 2541450±201.212HS
    83788107 127 157 207 2541650±201.612HS
