    12H Satin High Silica Fabric Fiberglass Cloth 1200g Welding Protection Blanket Fire Barrier

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : JNHS-600-92
    Certification : ISO 9001
    Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    Price : Negotiable
    • Product Details
    • Company Profile

    12H Satin High Silica Fabric Fiberglass Cloth 1200g Welding Protection Blanket Fire Barrier

    High-Temperature Fiberglass High Silica Glass Fiber Fabric For Not Burning


    1. Description:


    High silica Fabric by Changshu Jiangnan Glass Fiber Co., Ltd has excellent chemical stability, high-temperature resistance and good electrical insulation, it is widely used in extremely high-temperature environments. This product is ideal for heat preservation material, firefighting equipment like fire curtains, and fireproof garments. Very good in dust collection and filtration equipment where special material is needed to withstand high-temperature gas, and in filtering high-temperature liquid meta


    2. Technique Data Sheets for High Silica Cloth


    1WEAVESATIN 8HSTesting Method
    2Width92cm36.2inchDIN EN 1773
    100cm39.4inch
    84cm33.1inch
    3SiO2 Content≥96%-
    4Linear shrinkage ( 1000C 30min)<7.10%-
    5Area Shrinkage( 1000C 30min)<13.0%-
    6ColorWhite / Golden-
    7Thichness1.3±0.1mm0.051inchDIN EN ISO 5084
    8ThreatmentHydrochloric acid treatment-
    9Weight1100g/m232.4OZ/YD2DIN EN 12127
    10Thread countWARP20 per cm51 per inchDIN EN 1049-2
    WEFT15 per cm38 per inchDIN EN1049-2
    11Tensile strengthWARP≥1100EN ISO 13934-1
    N/InchWEFT≥900EN ISO 13934-1
    12Service temperatureUp to 1100ºC-

    3. Features:


    1. High-temperature resistance up to 1000℃.

    2. Strong fire resistant, good sealing property.

    3. Durable, anti-abrasion.

    4. High stability.

    5. Chemical resistance.

    6. No harm to the human body, asbestos-free.

    7. Environmentally friendly.


    4. Application:


    This kind of Silica cloth is a medium-weight silica glass fiber fabric. It can withstand high temperatures to 1000c, and it can resistant to extreme heat, molten metal splash, welding sparks, and splatter. It is designed for fire curtains, tough welding applications, high temperature applications.

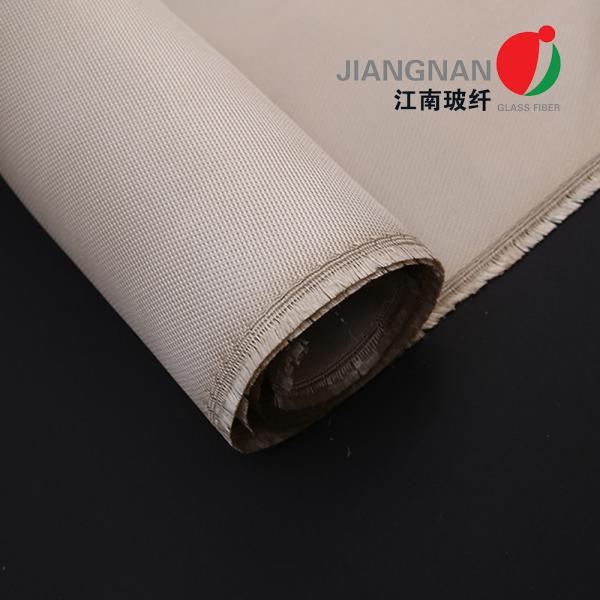

    5. Product Detail Images


    12H Satin High Silica Fabric Fiberglass Cloth 1200g Welding Protection Blanket Fire Barrier


    6. More Silica Cloth Specification


    Product NameModelWidth mmWorking Temperature℃Weight g/㎡SiO2 Content
    High SilicaJNHS-300-92921000300>96%
    High SilicaJNHS-450-92921000450>96%
    High SilicaJNHS-600-92921000612>96%
    High SilicaJNHS-600-1001001000612>96%
    High SilicaJNHS-600-1301301000612>96%
    High SilicaJNHS-880-92921000880>96%
    High SilicaJNHS-880-1001001000880>96%
    High SilicaJNHS-1100-929210001100>96%
    High SilicaJNHS-1100-10010010001100>96%
    Silica ClothJNSC-450-10010080060070%±5%
    Silica ClothJNSC-600-929280060070%±5%
    Silica ClothJNSC-600-10010080070070%±5%
    Silica ClothJNSC-600-15215280070070%±5%
    Silica ClothJNSC-1100-9292800110070%±5%
    Silica ClothJNSC-1200-100100800120070%±5%
    Silica ClothJNSC-1200-152152800120070%±5%
    High Silica Texturized ClothJNSCT-42-929210001450>96%
    High Silica Texturized ClothJNSCT-42-10010010001450>96%
