    Oven Safe Glass Kiln Ceramic Fiber Paper High Alumina

    Ask Lasest Price
    Brand Name : Changshu
    Model Number : TXY-1400
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, wESTERN uNION
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    Oven Safe Glass Kiln Ceramic Fiber Paper High Alumina

    Oven Safe Glass Kiln Ceramic Fiber cotton High Alumina Heat Resistant Insulation Wool Paper



    Insulation ceramic fiber paper is a lightweight refractory material processed from a blend of high purity alumina-silica fibres into a highly flexible, uniform sheet. It is recommended for classification temperatures up to 1430C. made of a bulk ceramic fibre and organic binder. It is necessary for gaskets to be used in high temperatures due to their excellent workability and ductility.


    Features of Thermal Insulation Ceramic Fiber Paper

    • High strength,tear resistance
    • Excellent mechining performance
    • Low thermal conductivity, low shrinkage, low density
    • Low thermal capacity
    • High flexibility
    • Low slag content
    • Excellent fire proof property
    • Excellent eletrical insulation properties

    Applications of Thermal Insulation Ceramic Fiber Paper

    • Asbestos paper replacement
    • Investment cast mold wrap insulation
    • One time consumable insulating applications
    • Back up lining for metal troughs
    • Hot top lining
    • Thermal and electrical insulation

    NameTypeThickness Range
    Ceramic Paper

    TXZ-1350

    1-5mm

    0.4-1mm,

    5-8mm


    TXZ-1260

    1-5mm

    0.4-1mm,

    5-8mm


    TXZ-1400

    1-5mm

    0.4-1mm,

    5-8mm


    TDS

    NameTXZ-1260TXZ-1350TXZ-1400
    Weight180±20180±20180±20
    Theoretical Temperature Resistance1260oC1350oC1400oC
    Long-time Use T1000-1100oC1100-1200oC1200-1250oC
    Weight Loss<=8%<=8%<=8%
    Al2O3>=42>=52>=49 [Zero>=3]

    Linear Shrinkage

    (1000oC-24h)

    <=4%<=4%<=4%
    Al2O3+SiO2>=94>=94

    Thermal conductivity

    [W/m k]


    400oC<=0.1<=0.1<=0.1
    800oC<=0.12<=0.12<=0.12
    1000oC<=0.135<=0.135<=0.135


    TypeMeaning
    TXZ-1260

    Moderate soft and hard

    Good strength

    Bent

    Widely application

    TXZ-1260R

    High Strength

    Easy Bend

    TXZ-1260R+

    Good Softness

    Used for Warpping

    No rebound

    TXZ-1260Y

    High strength

    Not easy to crack

    Used for pad

    TXZ-1260Y+

    Highest strength

    No layers

    Used for punching

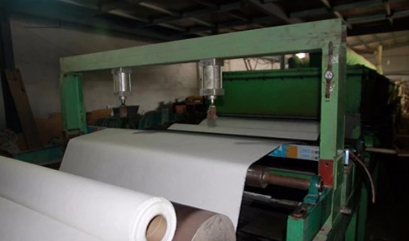

    Production Process


    Q1:Can I Print our Logo ou your products?

    A1: Yes, OEM is supported, but Cross listing is necessary.
    Q2: Can you provide samples?
    A2: Yes, we can provide samples for free, but we do not pay for the freight
    Q3: What is the MOQ?
    A3: 100 Pieces
    Q4: What payment ways do you support?
    A4: online pay, Paypal, T/T, Western Union, Credit Card, etc
    Q5: Delivery time of sample?
    A5: We will prepare samples within 5 days
    Q6: Delivery time of bulk order?
    A6: 20-30 days.
    Q7: Mode of transportation
    A7: By sea, air, courier or train.
    Q8: Are you a trading company or manufacturer?
    A8: We are manufacturer with more than 60 years production experience, and we have three own factories in China.
