    3732 0.4mm Cross Twill Weave E Glass 430gsm Fireproof Fiberglass Fabric Cloth

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 3732
    Certification : ISO9001:2015
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    Price : Negotiable
    • Product Details
    • Company Profile

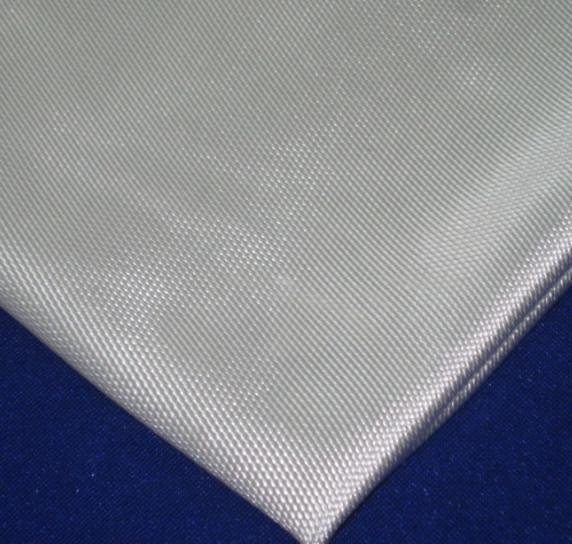

    3732 0.4mm Cross Twill Weave E Glass 430gsm Fireproof Fiberglass Fabric Cloth

    3732 430gsm 0.4mm Fiberglass Fabric Cloth Cross Twill Weave E Glass


    1. Descriptions:


    3732 glass fiber cloth is an industrial fabric with a weight of 430g per square meter and a thickness of 0.4mm. The weaving type of this 3732 fabric is called cross twill weave or broken twill weave. Compared with plain weave, this twill weave has a higher density. It is also a soft and loose structure.
    Like other basic cloths, 3732 fiberglass cloth can withstand temperatures of 550°C (about 1022°F). Its unit mass and thickness are suitable for many applications, such as fire blankets and curtains, and thermal insulation. It can also be used as a material for silicone, PU coating, and then as a material for refractory bags, fabric ducts and expansion joints.
    2. Specification
    Items3732
    Weave1/3 Cross Twill
    Weft and Warp YarnG37 1/0
    G37 1/0
    Thickness0.43mm
    Weight430g/m²
    Yarn CountWarp19.6/cm
    Weft11.5/cm
    Width127cm
    Tensile Strength6000N/5cm 4500N/5cm
    Working Temperature550°C

    3. Factors of Scoring In Quality Control

    • Fabric Quality
    1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
    2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
    3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
    4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

    4. Product Application


    • Insulation board
    • Fire prevention cloth
    • Reinforce plastics and composites
    • Aircraft, automobiles
    • Boat, surfboard building
    • Bath tubs and enclosures, hot tubs building
    • Water tanks, swimming pools
    5. Product Features
    • Anti chemical agents
    • Abrasion corrosion resistant
    • High strength in both warp and weft direction
    • Fire resistant, heat insulation
    • Electrical insulation
    • Good soak and bonding with varieties resin
    6. More Deatil Images for Product
    7. Related Products (If you want to other different thickness for fiberglass fabric)
    Related Fireproof Industry Fiberglass Cloth Roving
    Item NameThickness (mm)Weight (g/m2)WeaveWidth Length (cm)Remarks
    E76280.18180Plain127All Size Can be Customized
    C76280.2200Plain100/130/150
    CW2800.28280Plain102
    E37320.384301/3 Satin100/120/150/180/200
    C37320.384301/3 Twill100/120/150/180/200
    25230.38380Plain100/120/150/180/200
    E6660.66308H Satin100/120/150/180/200
    C6660.66308H Satin100/120/150/180/200
    E37840.88508H Satin100/120/150/180/200
    C37840.88508H Satin100/120/150/180/200
    E37861.28508H Satin100/120/150/180/200
    C3786a1.2100012H Satin100/120/150/180/200
    C3786b1.2120012H Satin100/120/150/180/200
    C3786c1.2130012H Satin100/120/150/180/200
    E37881.6165012H Satin100/120/150/180/200
    C37881.6165012H Satin100/120/150/180/200
