0.6mm Corrosion Resistance 666 Stainless Steel Wire Insert High Intensity Fiberglass Boat Cloth

1. Descriptions:

Mix each twisted yarn with a stainless steel wire in a fabric blended with glass fiber and stainless steel wire. It is used to increase the strength of the cloth at high temperature. This product is widely used in steel, electric power, metallurgy, chemical, environmental protection, cement and other fields. It can be used for the compensation of ventilation, flue gas, waste gas treatment and other pipelines. The steel wire has good thermal conductivity. This kind of cloth can withstand high temperatures instantly and can also be used as a brake friction material.

Fiberglass fabrics feature different weaves as noted:

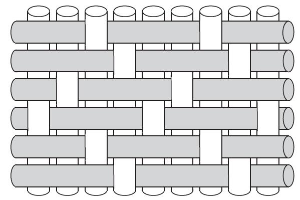

Plain Weaves—The plain weave consists of yarns interlaced in an alternating fashion, one over and one under every other yarn. The plain weave provides good fabric stability

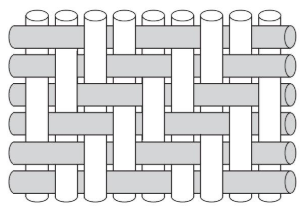

Twill weave—Twill is used for fabrics that require high density and tight weave. Twill weave is characterized by diagonal ribs or twill threads. The warp yarn floats on at least two consecutive weft yarns, allowing more yarn per unit area.

Satin weave—Four-wire satin weave is more flexible than plain weave, and it is easier to adapt to the typical curved surface in reinforced plastics. In this weave pattern, there is a three-by-one interweave in which the filler yarn floats above three warp yarns and below one.

2. Specification

Style	Weave	Count (Warp/Fill)	Weight	Thickness	Strength(Warp/Fill) [25*200mm]
666 Stainless Insert	Satin Weave	16*14.5	600gsm	0.6mm	3869 N/Piece 2976 N/Piece

3. Factors of Scoring In Quality Control

• Fabric Quality

1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

• ​Packaging :

1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch wrapped.

• High Quality:

1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,

• Low Price:

1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.

4. Product Application

Welding Protection

Fire Fight Blanket

Heat Insulation Cover

Smoking Curtain

5. Product Features

No asbestos or ceramic, no harm to human body

Excellent Strand integrity, low static, low content of dander

Have good interfacial property with matrix resin

Have good liquidity in the resin

The composite material can be given good

Physical and chemical properties

6. More Pictures for Product and Package

7. Related Products (If you want to other different thickness for fiberglass fabric)

Fiberglass Cloth Roving
Item Name	Thickness (mm)	Weight (g/m2)	Weave	Width Length (cm)	Remarks
E7628	0.18	180	Plain	127	All Size Can be Customized
C7628	0.2	200	Plain	100/130/150
CW280	0.28	280	Plain	102
E3732	0.38	430	1/3 Satin	100/120/150/180/200
C3732	0.38	430	1/3 Twill	100/120/150/180/200
2523	0.38	380	Plain	100/120/150/180/200
E666	0.6	630	8H Satin	100/120/150/180/200
C666	0.6	630	8H Satin	100/120/150/180/200
E3784	0.8	850	8H Satin	100/120/150/180/200
C3784	0.8	850	8H Satin	100/120/150/180/200
E3786	1.2	850	8H Satin	100/120/150/180/200
C3786a	1.2	1000	12H Satin	100/120/150/180/200
C3786b	1.2	1200	12H Satin	100/120/150/180/200
C3786c	1.2	1300	12H Satin	100/120/150/180/200
E3788	1.6	1650	12H Satin	100/120/150/180/200
C3788	1.6	1650	12H Satin	100/120/150/180/200
