    7628 0.2mm Electronic Fiberglass Fabric For Printed Circuit Boards

    Ask Lasest Price
    Brand Name : Changshu
    Model Number : 7628
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 5-14 Days after the Payment
    • Product Details
    • Company Profile

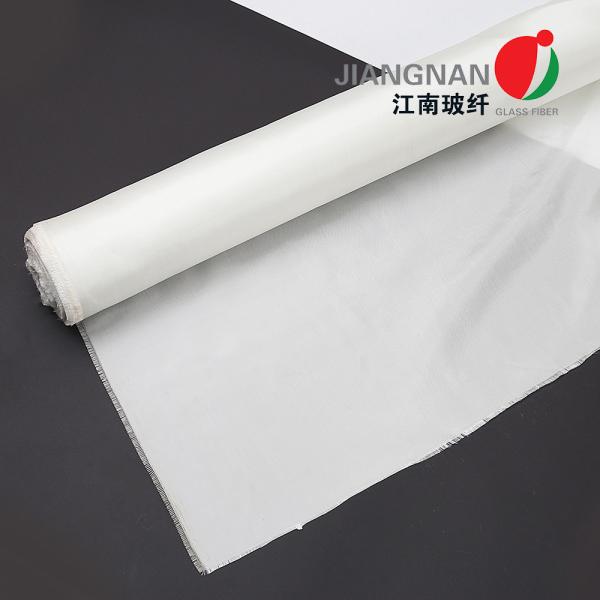

    7628 0.2mm Electronic Fiberglass Fabric For Printed Circuit Boards

    7628 0.2mm Electronic Fiberglass Fabric For Printed Circuit Boards


    1. Descriptions:


    7628 fiberglass fabric is one of electronic fiber glass cloth. It is woven by e-glass fiberglass yarns in plain weaving. It is mainly applied for electronics application. 7628 is an high density fiberglass cloth in 17.3/13 per cm. Fiberglass cloth is high strength fabric with fire resistance. This fabric is a ideal mateirial in electronics fields because of its fireproofing, abrasion resistance, flexiblity and ageing resistance, which make it suitable for high pressure laminates for printed circuit boards.

    7628 fiberglass fabric is weighed at 200g. Its thickness is 0.2mm which is suitable for laminating. Plain weave makes it a stable structure woven cloth. Yarn type is EC9 68 1X0 in warp and weft directions. This 6oz fiberglass cloth is able to resist 550degree C for a long time.


    2. Specifications:


    7628 Fiberglass Cloth
    Item No.7628
    DescriptionElectronic Fiberglass Fabric
    WeavePlain
    Yarn TypeWarpEC9 68 1X0ECG 75 1/0
    WeftEC9 68 1X0ECG 75 1/0
    Weight200 g/m5.90 OZ/YD2
    Thickness0.2 mm0.008 inch
    Thread CountWarp17 per cm44 per inch
    Weft13 per cm31 per inch
    TensileWarp2025 N/5cm225 lbs/inch
    StrengthWeft1620 N/5cm180 lbs/inch
    ColorWhite
    Service Temperature≤550℃

    3. Factors of Scoring In Quality Control

    • Fabric Quality
    1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
    2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
    3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
    4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.

    4. Product Application


    • Copper clad lamination
    • Basic cloth for coating
    • Reinforce plastics and composites
    • Thermal applications
    • Aircraft, automobiles
    • Surfboard, boat manufacturer
    • Bath tubs, swinmming pool production
    • Printed-circuit board
    5. Product Features
    Electrical Properties.
    Thermal Conductivity, Dimensional Stability.Chemical Resistance Fire Resistance,Moisture Resistance.
    The Materials all are from natural, the abundant raw materials are renewable.
    High strength, high modulus, variable weight, floating large.
    Excellent durability, consistent with the life cycle of electronic products.
    Excellent electrical performance, cost-effective can not be replaced.
    All can be compounded, provide a basis to the use of other areas.
    6. More Pictures for Product and Package
    7628 0.2mm Electronic Fiberglass Fabric For Printed Circuit Boards

    7. Related Products (If you want to other different thickness for fiberglass fabric)


    Fiberglass Cloth Roving
    Item NameThickness (mm)Weight (g/m2)WeaveWidth Length (cm)Remarks
    E76280.18180Plain127All Size Can be Customized
    C76280.2200Plain100/130/150
    CW2800.28280Plain102
    E37320.384301/3 Satin100/120/150/180/200
    C37320.384301/3 Twill100/120/150/180/200
    25230.38380Plain100/120/150/180/200
    E6660.66308H Satin100/120/150/180/200
    C6660.66308H Satin100/120/150/180/200
    E37840.88508H Satin100/120/150/180/200
    C37840.88508H Satin100/120/150/180/200
    E37861.28508H Satin100/120/150/180/200
    C3786a1.2100012H Satin100/120/150/180/200
    C3786b1.2120012H Satin100/120/150/180/200
    C3786c1.2130012H Satin100/120/150/180/200
    E37881.6165012H Satin100/120/150/180/200
    C37881.6165012H Satin100/120/150/180/200
