    6 Oz. Fiberglass Plain "Tight" Weave Fabric Style 7628 For PTFE Coating Cloth

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : E7628
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 5-14 Days after the Payment
    • Product Details
    • Company Profile

    6 Oz. Fiberglass Plain "Tight" Weave Fabric Style 7628 For PTFE Coating Cloth

    6 Oz. Fiberglass Plain "Tight" Weave Fabric Style 7628 For PTFE Coating Cloth


    1. Descriptions:


    Jiangnan 6 oz. Fiberglass fabric is a plain weave fabric woven from E-glass fibers. The higher number of yarns per inch creates and tightly woven fabric that bulks up quickly and leaves a smooth finish. 7628 e-glass fiber glass cloth is one of the electronic grade fiberglass cloth. It is woven in plain weave and it is weighed at 200g/m2. Standard roll is 1.27m wide x 100m long. It is ideal for flat surface lamination and is suitable for use in wet layup, vacuum bagging and resin infusion manufacturing. It has been sized with an epoxy and polyester compatible finish to enhance wet-out and is compatible with polyester, vinyl-ester and epoxy resins. Therefore, this kind of material is also used for PTFE coating Raw material.


    2. Specification

    Specification-7628
    NO.Technical DatasStyle 7628
    1Weave PattemPlain
    2Fabric Weihgt , g/m2210±5
    3Width ,mm1000-2000
    4Length,m2500Max.
    5Yarn Density
    Ends Warp,1/in44.0±1
    Picks Weft,1/in33.0±1
    6Yarn
    WarpG75 1/0
    WeftG75 1/0
    7Breaking strength
    Warp,N/cm380Min.
    Weft,N/cm320Min.
    8Thickness,mm0.165±0.02
    9LOI,%2.6<0.4%
    10Roll Splice0
    11Selvedge,mm5Max.
    12Core ID and thickness3 in.ID, 4 in. OD
    13ColorWhite
    14FinshGreige

    3. Product Application


    • Copper clad lamination
    • PTFE Coating
    • Copper substrate
    • Insulation board
    • Reinforce plastics and composites
    • Aircraft, automobiles
    • Boat, surfboard building
    • Bath tubs and enclosures, hot tubs building
    • Water tanks, swimming pools
    4. Product Features
    • Electrical Properties
    • Excellent durability, consistent with the life cycle of electronic products
    • Excellent electrical performance, cost-effective can not be replaced

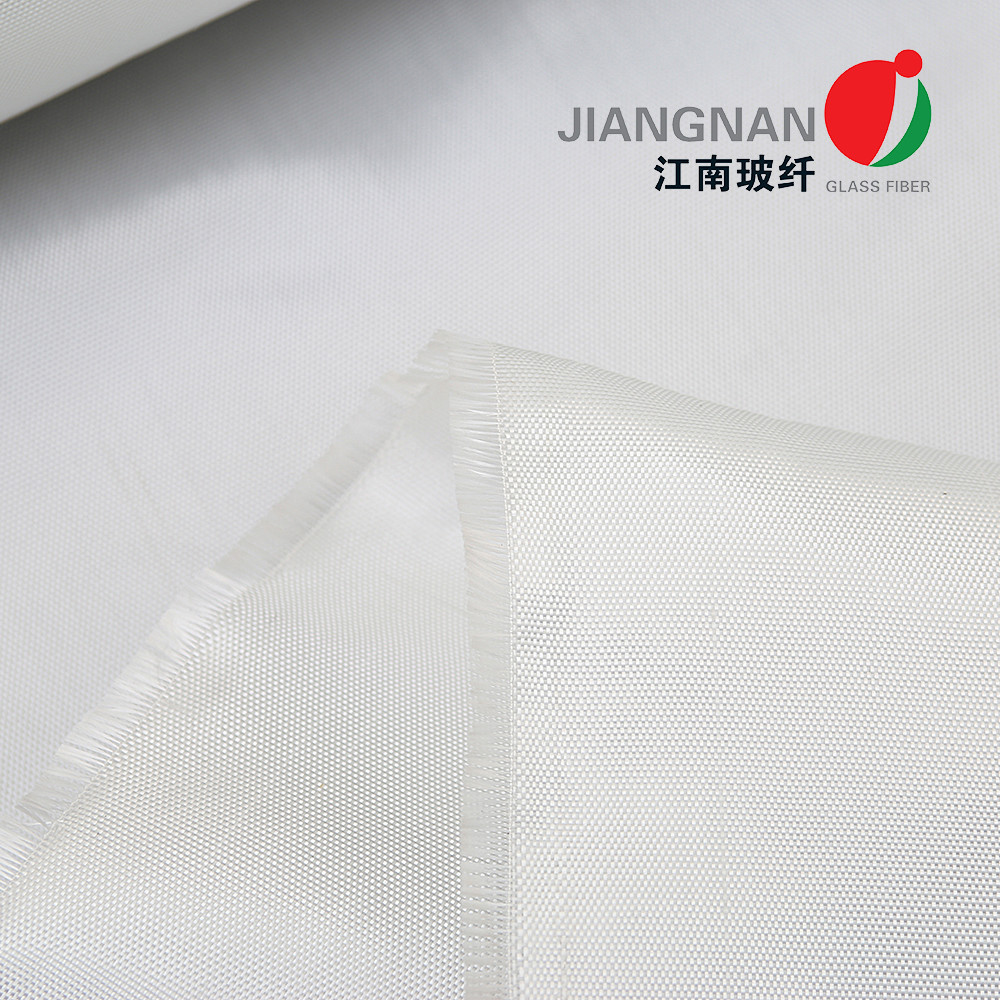

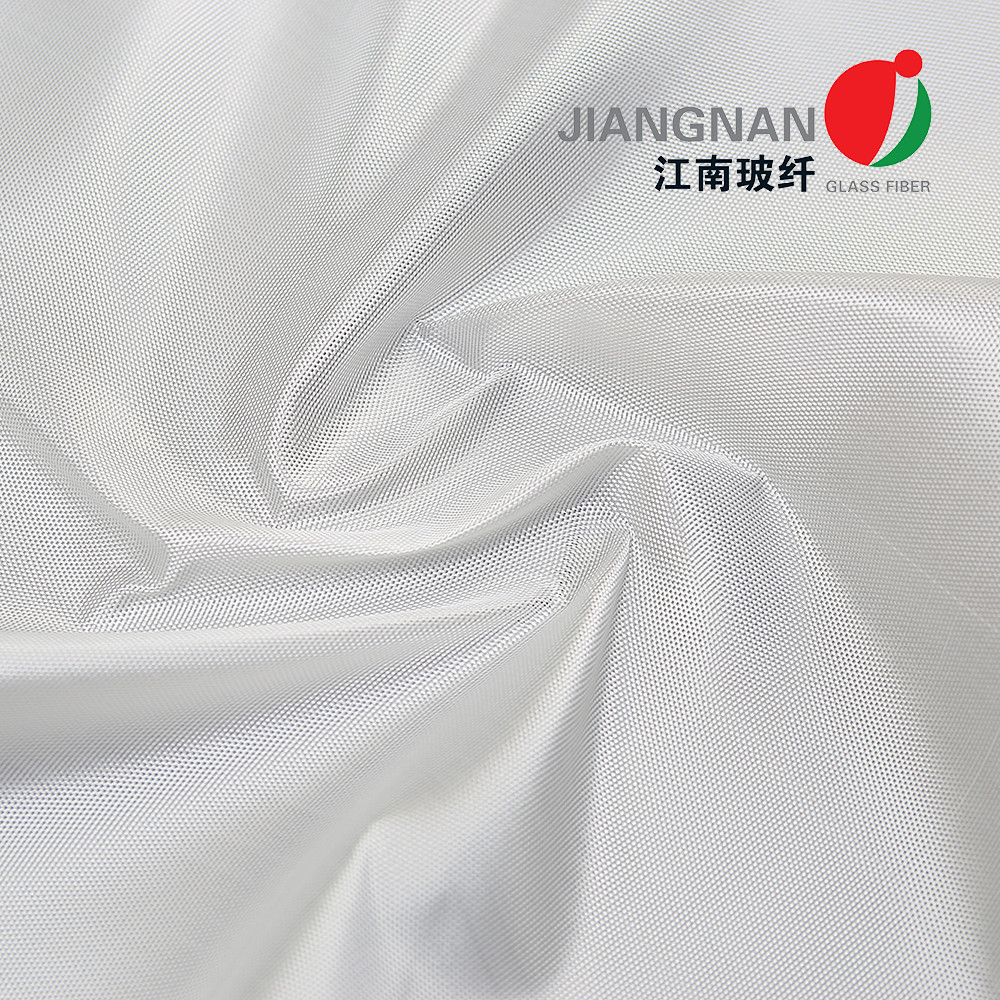

    6. More Pictures for Product and Package
    6 Oz. Fiberglass Plain "Tight" Weave Fabric Style 7628 For PTFE Coating Cloth
    6 Oz. Fiberglass Plain "Tight" Weave Fabric Style 7628 For PTFE Coating Cloth
    7. Related Products (If you want to other different thickness for fiberglass fabric)
    Fiberglass Cloth Roving
    Item NameThickness (mm)Weight (g/m2)WeaveWidth Length (cm)Remarks
    E76280.18180Plain127All Size Can be Customized
    C76280.2200Plain100/130/150
    CW2800.28280Plain102
    E37320.384301/3 Satin100/120/150/180/200
    C37320.384301/3 Twill100/120/150/180/200
    25230.38380Plain100/120/150/180/200
    E6660.66308H Satin100/120/150/180/200
    C6660.66308H Satin100/120/150/180/200
    E37840.88508H Satin100/120/150/180/200
    C37840.88508H Satin100/120/150/180/200
    E37861.28508H Satin100/120/150/180/200
    C3786a1.2100012H Satin100/120/150/180/200
    C3786b1.2120012H Satin100/120/150/180/200
    C3786c1.2130012H Satin100/120/150/180/200
    E37881.6165012H Satin100/120/150/180/200
    C37881.6165012H Satin100/120/150/180/200
