    Insulation Non Adhesive Fiberglass Woven Cloth Tape

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : Heat Resistant Reinforced Glass Fiber Tape
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    Insulation Non Adhesive Fiberglass Woven Cloth Tape


    Insulation Materials Non Adhesive Fiberglass Woven Cloth Tape


    1. Description:


    thickness: 0.1mm-0.25mm

    width:10-150mm

    Fiberglass insulation tape is made of nonalkali glassfiber yarn. It is woven by twisted strands of fiberglass at right angles to one another, having the highest glass resin ratio and mechnical strength of all fiberglass insulaiton materials.

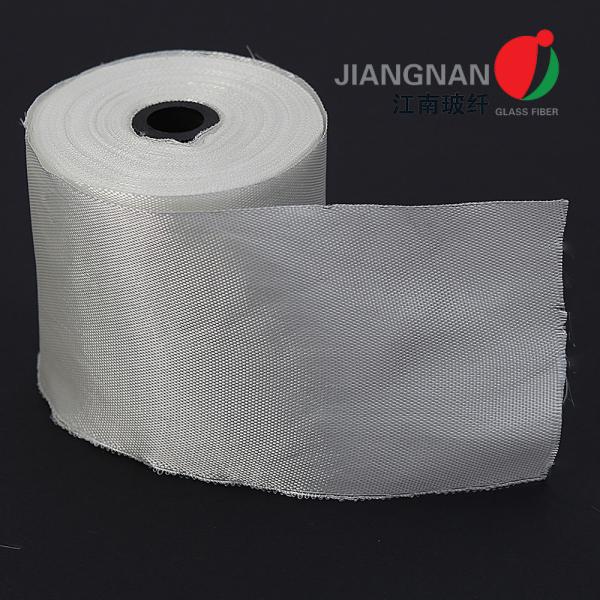

    2. Detail Images For Fiberglass Tape


    Insulation Non Adhesive Fiberglass Woven Cloth TapeInsulation Non Adhesive Fiberglass Woven Cloth Tape


    3. Product Characteristics:


    Fabric from high quality textured anti-fire yarns which can withstand continuous exposure to temperature of 550°C. It resists most acids and alkalis , also our fiberglass tape is unaffected by most of bleaches and solvents.


    4. Applications:


    It can be used as wrapping and banding material for transformers, electric motors and cables.


    No.PropertiesUnitValues
    1Lengthm10~50
    2Nominal thicknessmm0.10~0.20
    3Widthmm10~300
    4Fracture strengthN/20mm≥400

    5. Factors of Scoring In Quality Control


    • Fabric Quality
    1. We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth
    2. We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.
    3. If any testing data is less than the specified testing content, the roll will be rated as unqualified.
    4. Our company has Oven to test the Heat resistance temperature for each product by customer orders.
    • ​Packaging :
    1. Jiangnan oven Fiberglass Cloth is wound into a roll on a cardboard inner tube with an inside diameter of 10cm (4"). Each roll is wrapped with a plastic bag and placed in a cardboard box. 12 or 16 boxes are placed horizontally on a pallet, which is stretch wrapped.
    • High Quality:
    1. The fiberglass yarns is supplied by ourselves, it is more 20% strength and beautiful surface than normal fiberglass yarns,
    • Low Price:
    1. Our material factory locates next to a power station,so we produce the glass fiber with low electricity and low water cost.

    6. Table 1: E-glass Fiberglass insulation tape (We can alao customized depends to your provide thickness and weight)


    ItemThicknessWidth (mm)Length
    Fiberglass Tape0.0812-20050m
    0.1512-20051m
    0.212-20052m
    0.312-20053m
    0.1312-20054m
    0.1812-20055m
    0.2512-20056m
    0.3212-20057m
    0.3812-20058m
    0.412-20059m
    0.512-20060m
    0.812-20061m
