    12 Harness Satin Woven Fiberglass Fabric Coated Fiberglass Fabric

    Ask Lasest Price
    Brand Name : Jiangnan
    Model Number : 3788
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10000 Square Meters per day
    Delivery Time : 14 Days after the Payment
    • Product Details
    • Company Profile

    12 Harness Satin Woven Fiberglass Fabric Coated Fiberglass Fabric

    Durable Industrial woven glass cloth For Composite And coated fiberglass fabric Material


    1. Product description


    The standard thickness of all industrial fiberglass cloth that Changshu Jiangnan is making now varies from 0.03mm to 1.70mm. We can also do adjustment on thickness according to customers’detailed demand.

    Satin weave. Comparing with Plain weave and Twill weave, this kind of weaving can make into the fabric with high density and strength, more heavy per unit area but loose and soft structure with good hand feeling using the yarn with same Warp and Weft. It can be used for reinforcement material with higher demand on mechanical performance. It is also called long shaft satin. The typical product code are 3784 and 3788.


    2. Table 1: 3788 Product Description


    Item No.3788
    Descriptionheavy duty industrial use fabric.
    Weave12HS Stain
    Yarn TypeWarpEC9 33 4*4EC9 33 4*4
    WeftEC9 33 4*4EC9 33 4*4
    Weight1650 g/m47 OZ/YD2
    Thickness1.7 mm0.0055774inch

    3. Product Features:


    No ceramic, no harm to the human body.

    Low thermal conductivity, excellent thermal insulation, high resistance to thermal shock

    This fiberglass fabric is made of continuous fiberglass yarns.

    It is smooth, soft and compact,

    It has an outstanding function: low weight, high strength, high heat-resistant, thermal resistance, nonflammable, anti-corrosion,

    good electrical insulation and, environment protection.


    4. Applications:


    C glass fiber mesh offers great alkaline-resistance and high strength. It is a good and effective engineering construction material for enhancement anti-crack, earthquake resistance and prolongs the life of modern building. It is widely used to reinforce cement, stone, wall materials, roofing, marble strengthening, plasterboard framework, membrane material reinforcement.


    5. Factors of Scoring In Quality Control


    We have our own factory in Shandong to produce alkali-free and medium-alkali glass fiber yarns, which are sent to the glass fiber cloth production plant in Changshu every week. We will control the quality and price from the source of the glass fiber cloth.


    ​We have our own laboratory for product quality testing. We will select 50 meters for testing ​for every 1000 meters of fiberglass cloth. Each product has corresponding indicators. Only when all the inspections are qualified, we will send the goods to the customer, when we encounter products with unqualified quality, we will destroy them. The testing content includes Weft and Warp tension force, Weft and Warp density, Thickness, Width, Length, temperature resistance, electrical conductivity, and cloth surface quality inspection.


    ​If any testing data is less than the specified testing content, the roll will be rated as unqualified.


    ​Our company has Oven to test the Heat resistance temperature for each product by customer orders.


    6. Much More Detail Images

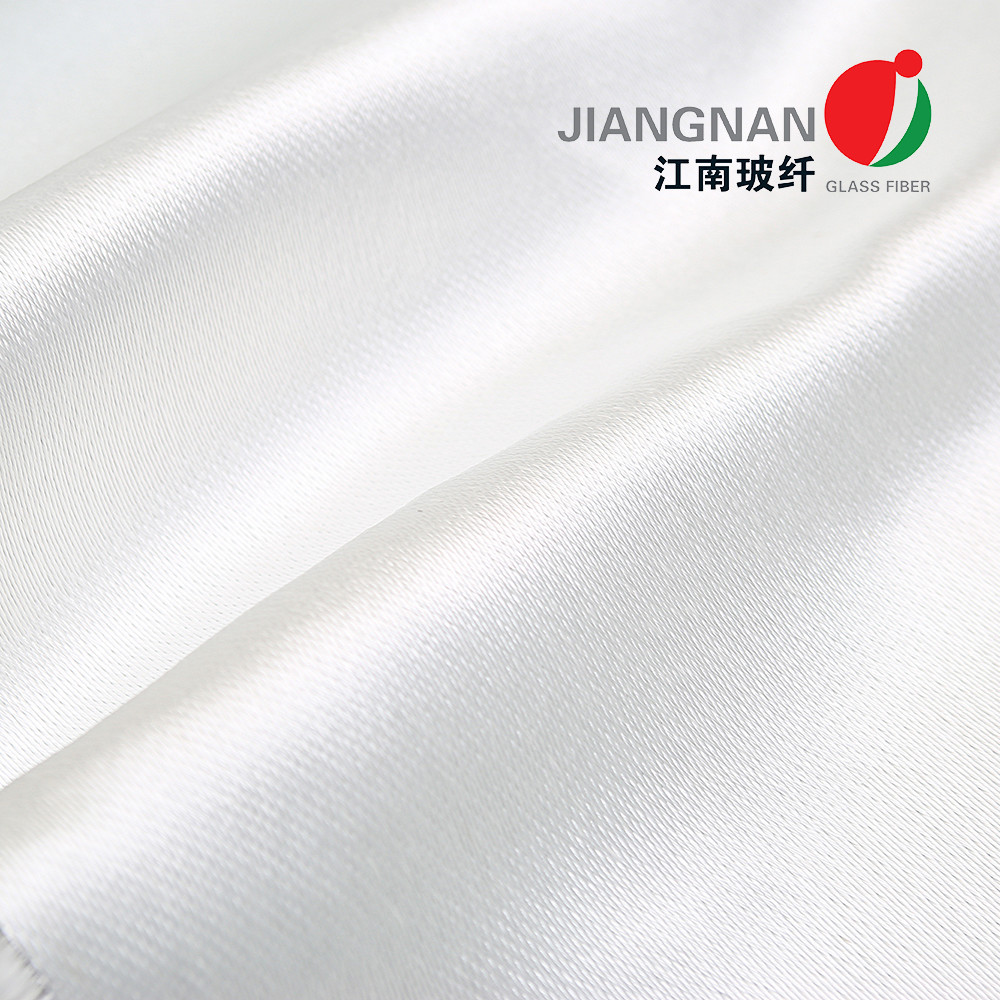

    12 Harness Satin Woven Fiberglass Fabric Coated Fiberglass Fabric


    7. Related Products (If you want to other different thickness for fiberglass fabric)
    Fiberglass Cloth Roving
    Item NameThickness (mm)Weight (g/m2)WeaveWidth Length (cm)Remarks
    E76280.18180Plain127All Size Can be Customized
    C76280.2200Plain100/130/150
    CW2800.28280Plain102
    E37320.384301/3 Satin100/120/150/180/200
    C37320.384301/3 Twill100/120/150/180/200
    25230.38380Plain100/120/150/180/200
    E6660.66308H Satin100/120/150/180/200
    C6660.66308H Satin100/120/150/180/200
    E37840.88508H Satin100/120/150/180/200
    C37840.88508H Satin100/120/150/180/200
    E37861.28508H Satin100/120/150/180/200
    C3786a1.2100012H Satin100/120/150/180/200
    C3786b1.2120012H Satin100/120/150/180/200
    C3786c1.2130012H Satin100/120/150/180/200
    E37881.6165012H Satin100/120/150/180/200
    C37881.6165012H Satin100/120/150/180/200
